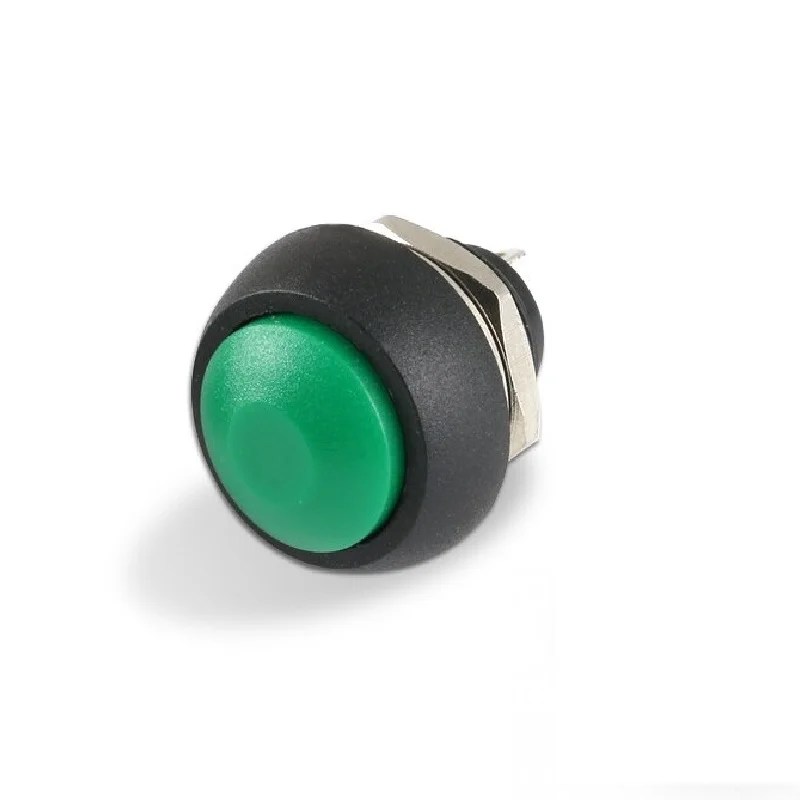

Green Waterproof Push Button PBS- 33B 12MM 2PIN Self-Reset Mini Round (Pack of 5) Best Quality


  1. Self-locking/Latching Self-reset
  2. Good electrical conductivity
  3. This is Momentary type push-button switch
  4. Easy to use
  5. Light Weight
  6. Function: Momenta

169.49 211.86

Compare

These momentary switches or push buttons are ordinarily used in controller panels, push-button telephones, kitchen appliances, magnetic locks, and several other mechanical and electronic devices used across homes or industries.

Push buttons can be explained as simple power-controlling switches of a machine or appliance. These are generally metal or thermoplastic switches that are intended to grant easy access to the user. The idea of electric circuits is that electricity should be able to flow uninterrupted through multiple wires and components. However, circuits that are always complete aren’t as useful as the ones that work only when required.

The Push-button switch is widely used as an operational unit in various electrical circuits, electrical devices, and machines in the home and industry. The switch can operate circuits, turning on and offloads such as contractors, engines, relays, and so on. It is a push-on-release-off type switch.

Note: Image may vary from actual product in terms of design, color, and brand printed




Features of push button:push button

  1. Easy to use
  2. Best for your DIY projects
  3. Self-locking/Latching Self-reset
  4. Good electrical conductivity
  5. This is a Momentary type push switch

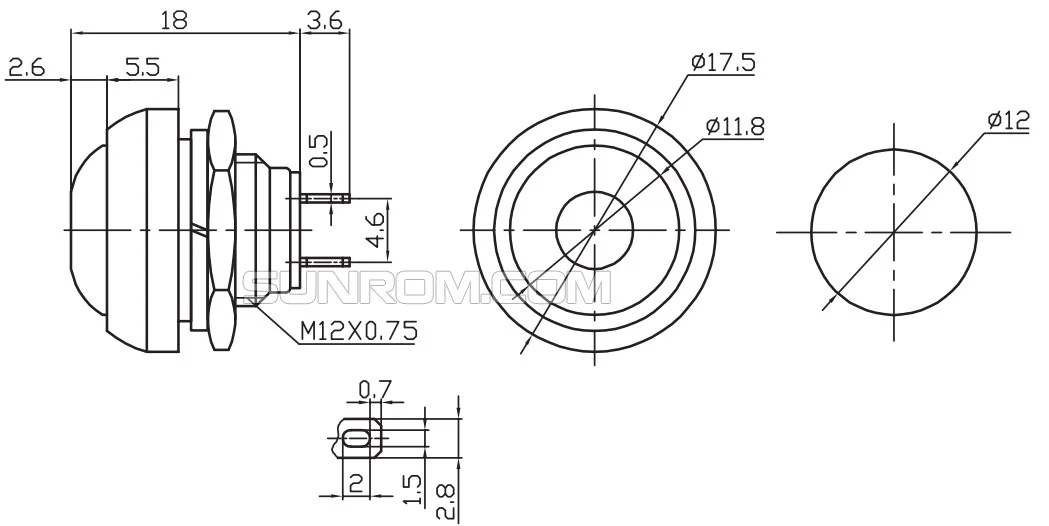

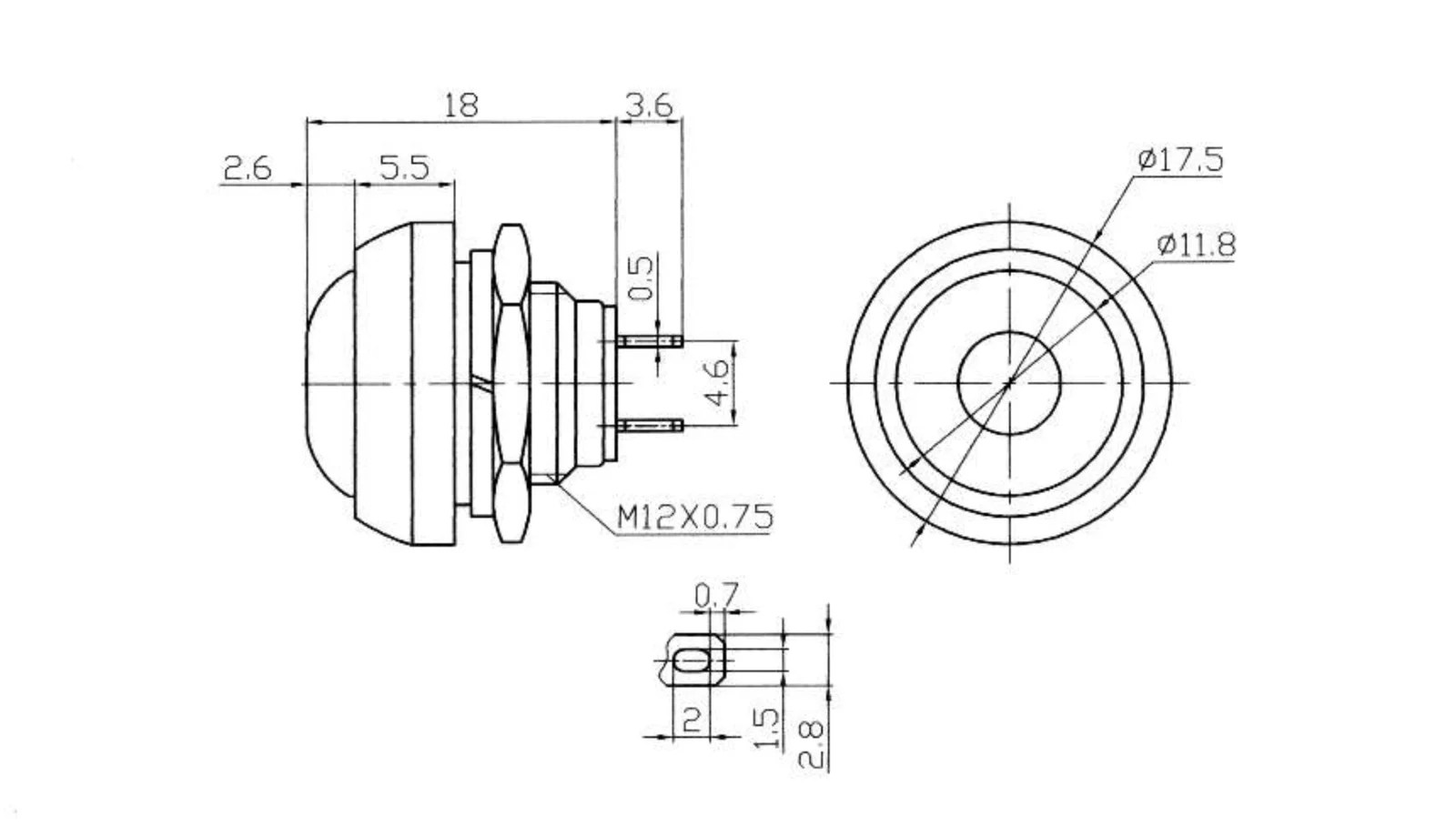

DATASHEET


Packages Include:

1 x Green Waterproof PBS- 33B 12MM 2PIN Self-Reset Mini Round

Weight 0.020 kg
HSN Code

85365010

Function Momentary
Model No. PBS- 33B
Operating Voltage(V) 2A 250VAC/5A 120VAC
Material Plastic
Color Black
Terminals 2 Pin
Temperature -25°C to 85°C
Dimensional Accuracy (mm) 12mm
Shipment Weight 0.006 kg
Shipment Dimensions 5 × 5 × 2 cm
