Slide Switch 3 Pin 2 Way SPDT (2.54mm Pitch)

Slide Switch 3 Pin 2 Way SPDT

This 3-pin 2-way SPDT slide switch is a compact and reliable control component designed for everyday electronic projects and professional applications alike. With its smooth sliding action and small footprint, it’s ideal for situations where space is limited but precise switching is essential.

Built for consistent performance, the switch features a durable internal mechanism that ensures stable operation over long periods of use. The two-position SPDT design allows easy circuit control, while the standard 2.54 mm pitch makes it fully compatible with common PCBs and breadboards.

Rated for DC 50V at 0.5A, this slide switch is well-suited for low-power switching tasks in control panels, development boards, and embedded systems. Whether you’re working on automation equipment, communication devices, or DIY electronics, this switch delivers dependable results without adding unnecessary cost.

Simple to install, easy to operate, and built to last—this slide switch is a practical choice for engineers, hobbyists, and technicians looking for efficient control in a compact form.

Applications

• CPU modulation
• Wireless communication devices
• Broadcast and TV equipment
• Software programming boards
• Automated machinery
• Instruments and meters

Specifications

• Action Type: SPDT
• Positions: 2
• Switch Type: Slide
• Terminal Count: 3

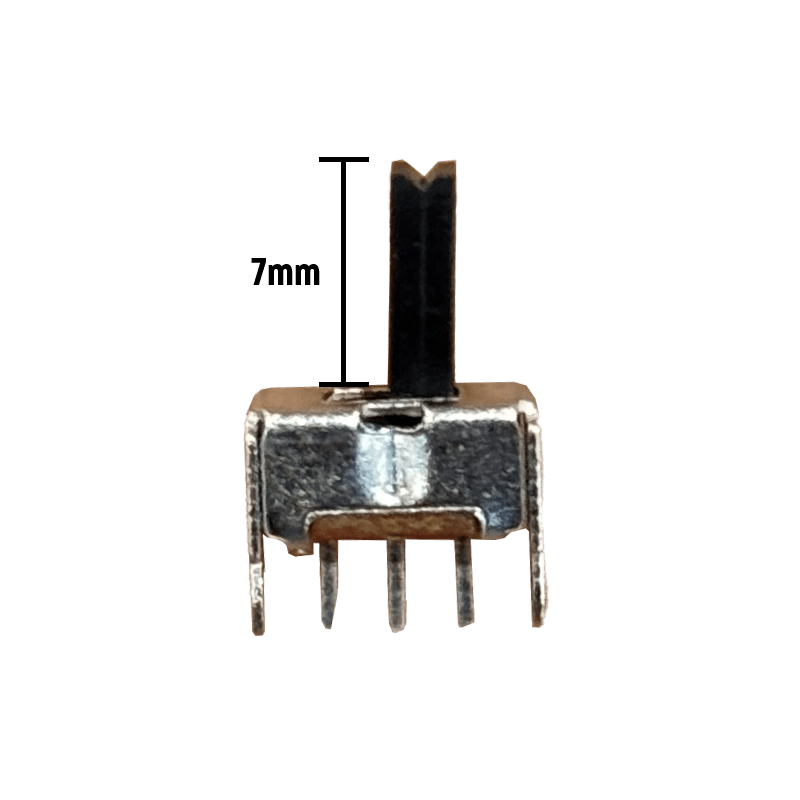

• Knob Height: 7 mm
• Main Body Size: 8.5 × 4 × 11.3 mm (L × W × H)
• Rated Power: DC 50V, 0.5A
• Insulation Resistance: ≥ 100 MΩ at 500V DC
• Withstand Voltage: AC 500V (1 minute)
• Pin Pitch: 2.54 mm

Package Includes

1 × Slide Switch 3 Pin 2 Way SPDT
