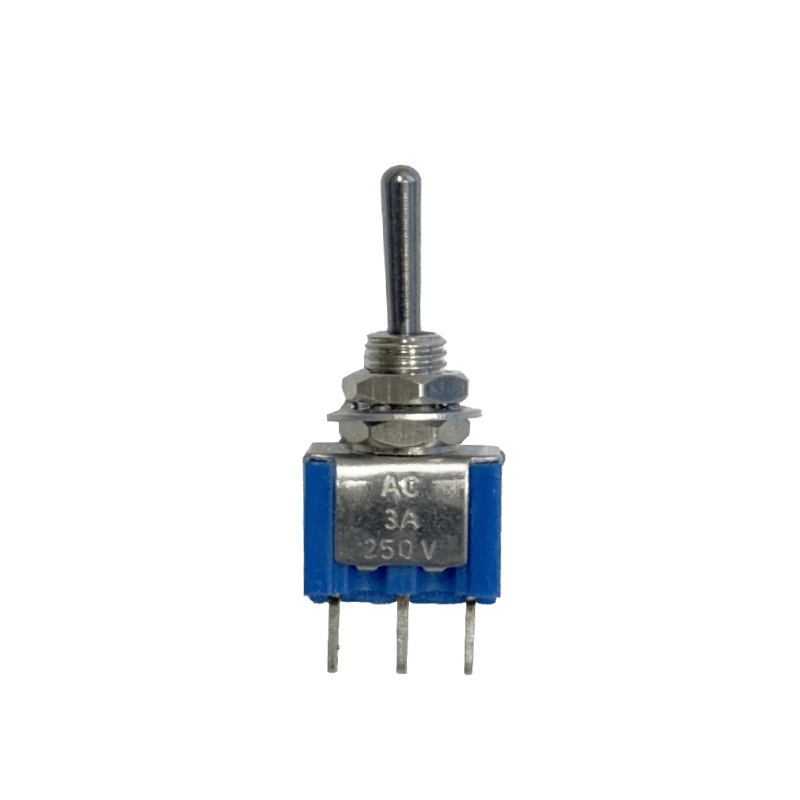

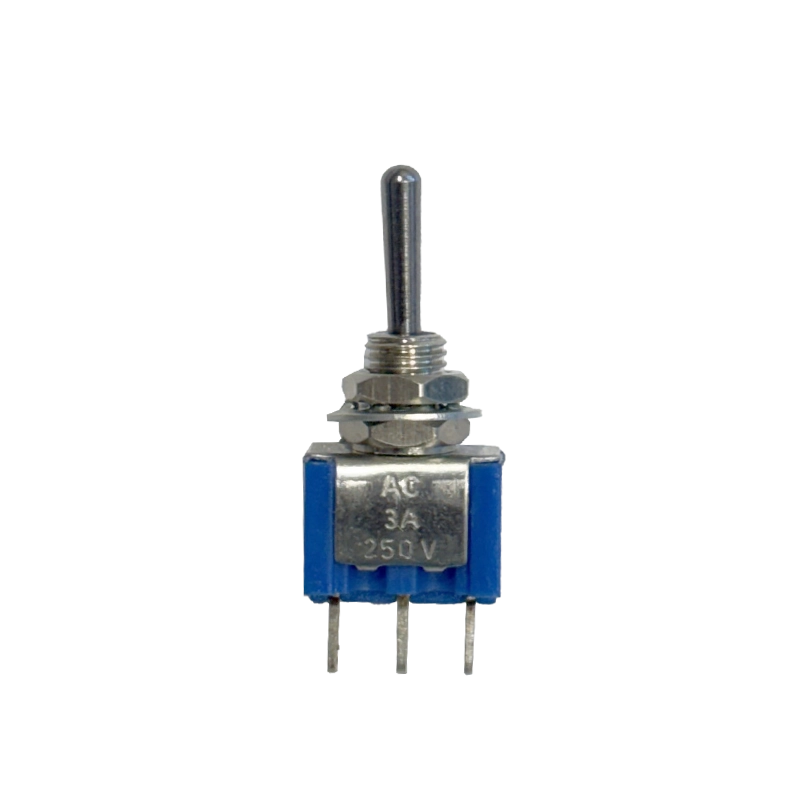

MTS-101-F1 Miniature Toggle Switch – 2 Pin (ON-OFF)

MTS-101-F1 Miniature Toggle Switch – 2 Pin (ON-OFF)

Compact, reliable, and built for precision, the MTS-101-F1 Miniature Toggle Switch delivers smooth ON-OFF operation for a wide range of electronic applications. Rated for 6A at 125V or 3A at 250V, this 2-pin switch ensures consistent performance while maintaining low contact resistance and high insulation reliability.

Designed to handle up to 10,000 cycles, it’s perfect for projects where durability and stability matter. Its wide operating temperature range of -25°C to 85°C makes it suitable for both indoor and outdoor electronics.

Key Features:

• Compact 2-pin design for easy integration
• Contact resistance: ≤20 mΩ for reliable connections
• Insulation resistance: ≥1000 MΩ at 500V DC
• Dielectric strength: 1500 VDC for 1 minute
• Long-lasting electrical life: 10,000 cycles
• Operates in temperatures from -25°C to 85°C
• Rating: 6A 125V; 3A 250V

Package Includes:

1 × MTS-101-F1 Miniature Toggle Switch (ON-OFF)
