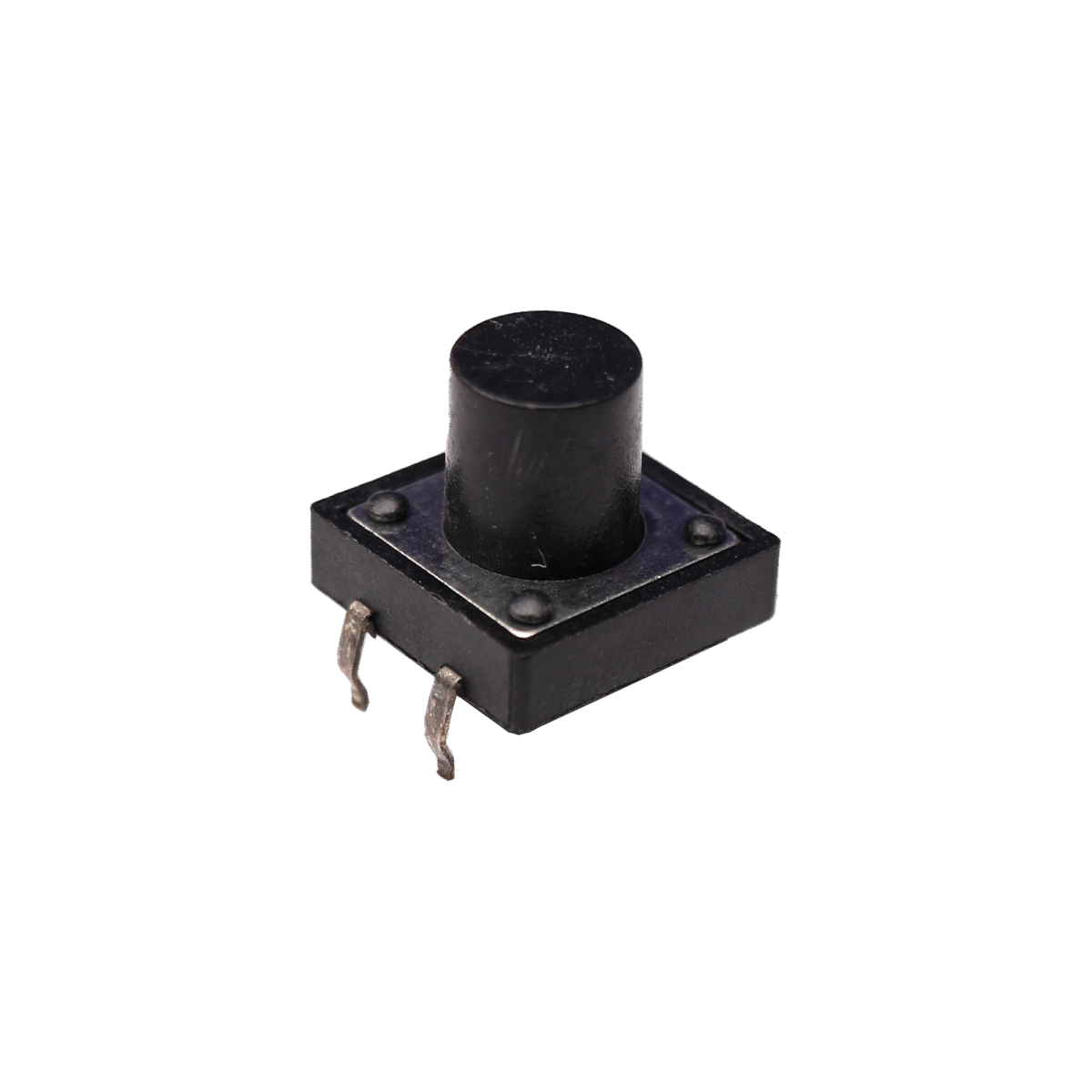

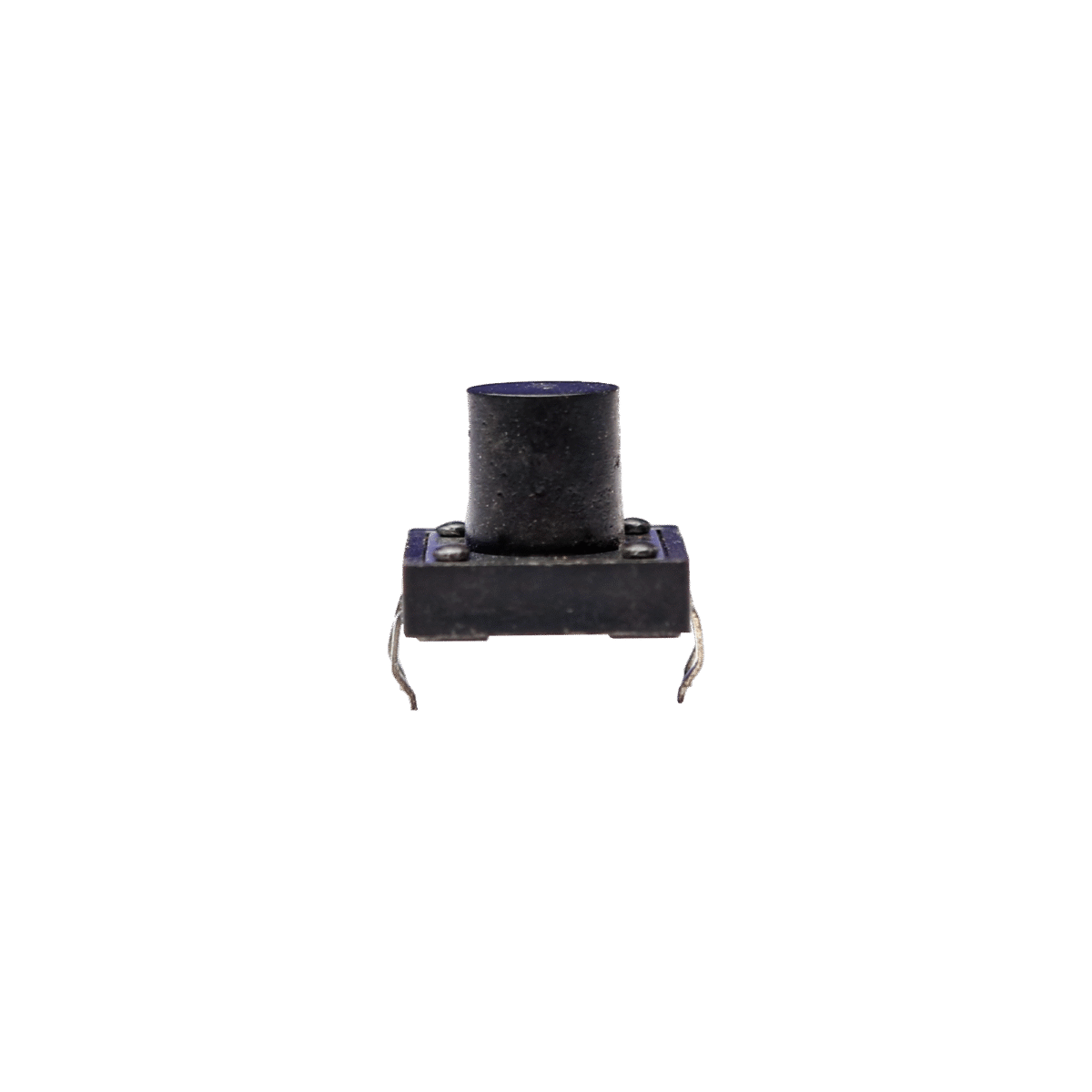

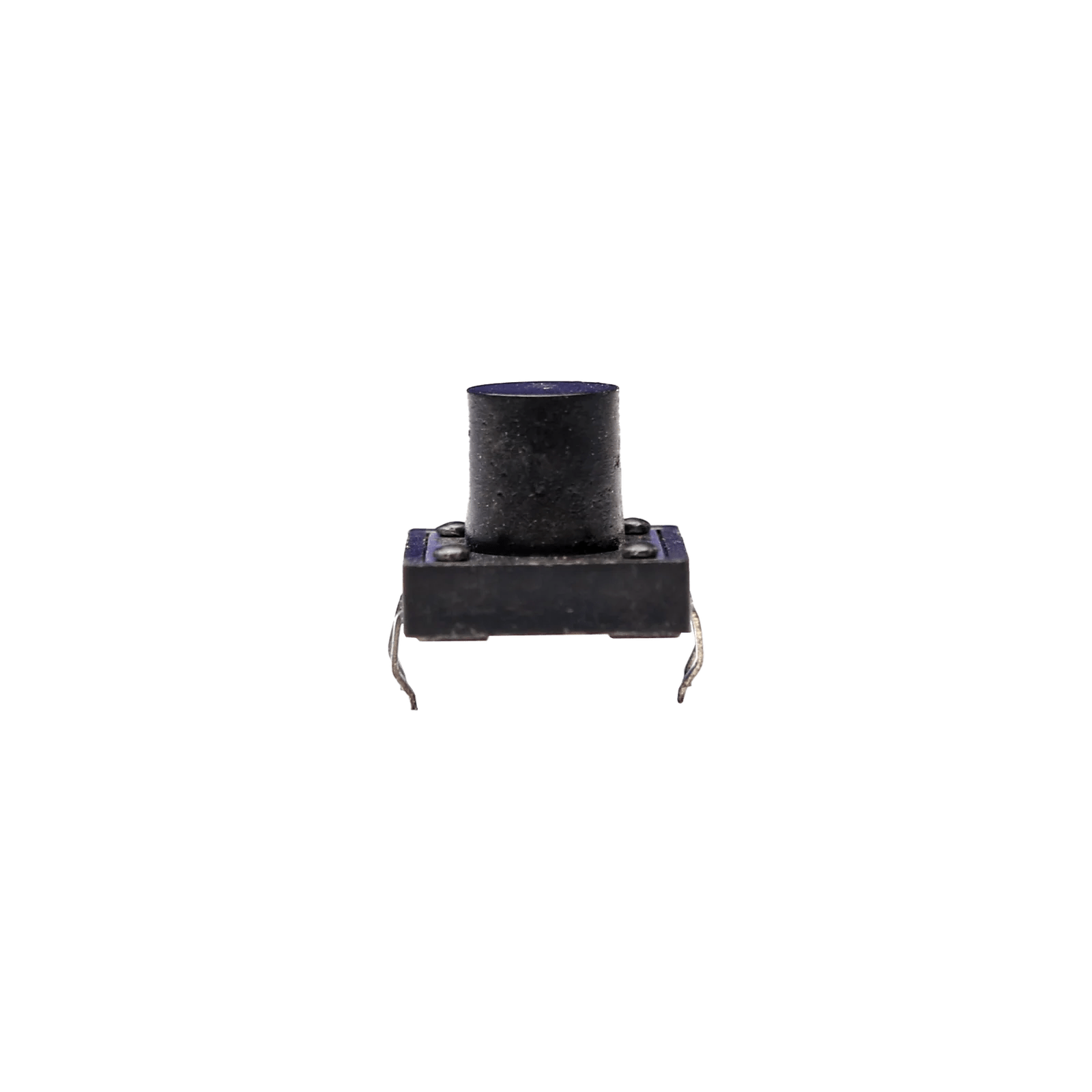

12x12x12mm Tactile Push Button Switch-10Pcs.


  1. Through-hole design.
  2. Shaft Shape: Round
  3. Function: Push to ON
  4. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  5. The long life of 300,000 cycles was realized despite the high operating force
  6. Middle stroke (1.05mm)

38.14 50.85

Compare

About Push Button

12x12x12 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount them on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

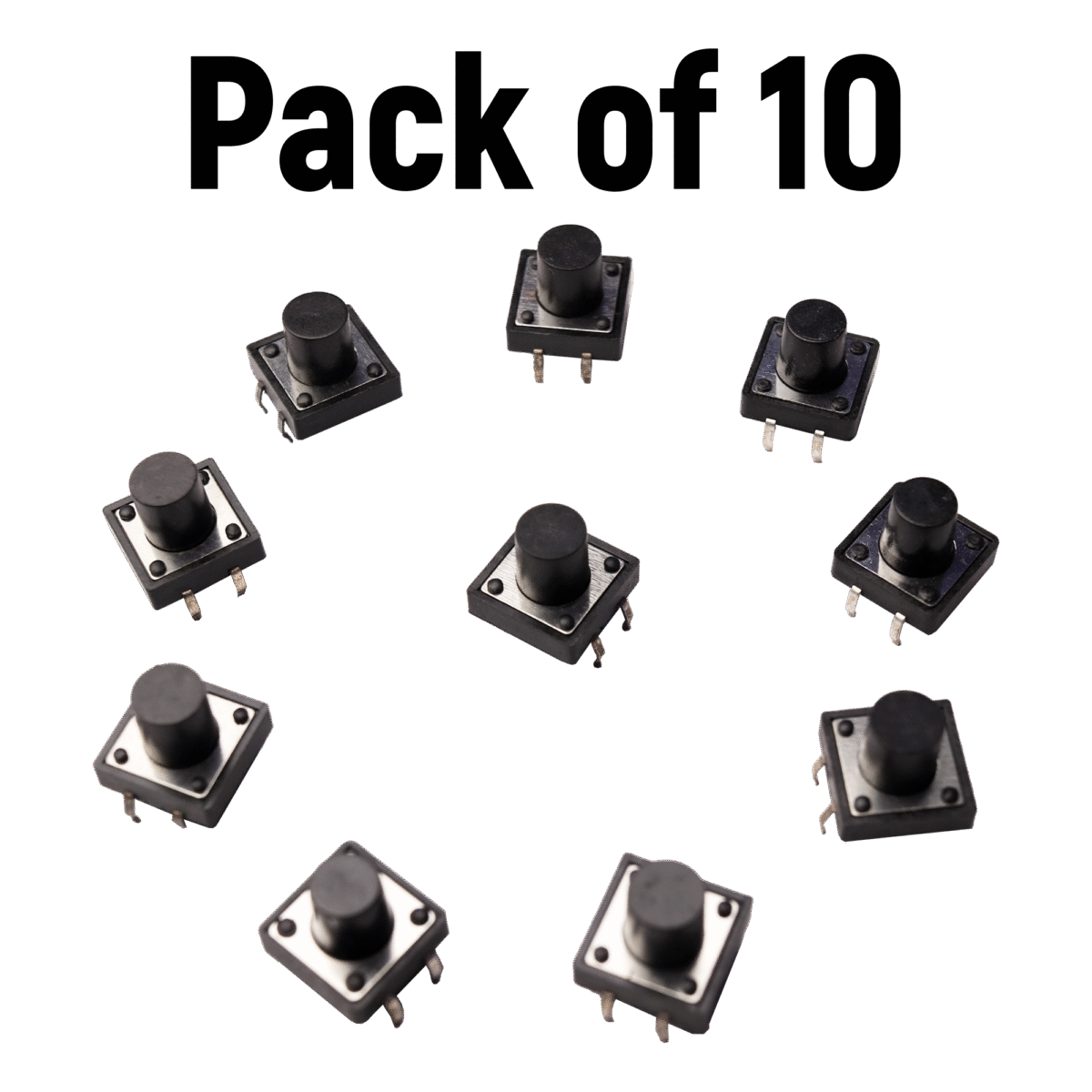

They come in a pack of 10, as they’re pretty handy so you’ll want to keep them around.

Features :

  1. Through-hole design.
  2. Shaft Shape: Round
  3. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  4. The long life of 300,000 cycles was realized despite the high operating force
  5. Middle stroke (1.05mm)
  6. Used in the fields of electronic products, household appliances, and more.
  7. High-precision mechanism design offers acute operation and long service life.
  8. Compact and lightweight, easy to carry and dismantle.
  9. Good electrical conductivity.

Package Includes :

1 x 12 x 12 x 12mm Tactile Push Button Switch-10Pcs.

Weight 0.011 kg
HSN Code

85365010

Operating Voltage 12 V DC
Operating Current 50mA
On/Off Function Push to ON
Switch Type Momentary
Mounting Type Through-hole
Contact Material Aluminium alloy
Contact Resistance 50mΩ
Insulation Resistance 100MΩ
Operating Temperature Range -20°C to +70°C
Operation Force About 3-5N
Operation Stroke 1.05mm
Body Material Plastic
Mech. & Electrical Life 300,000 Cycles
Protection Grade IP65
Length (mm) 12
Width (mm) 12
Height (mm) 12
Weight (gm) 1 (approx) (each)
