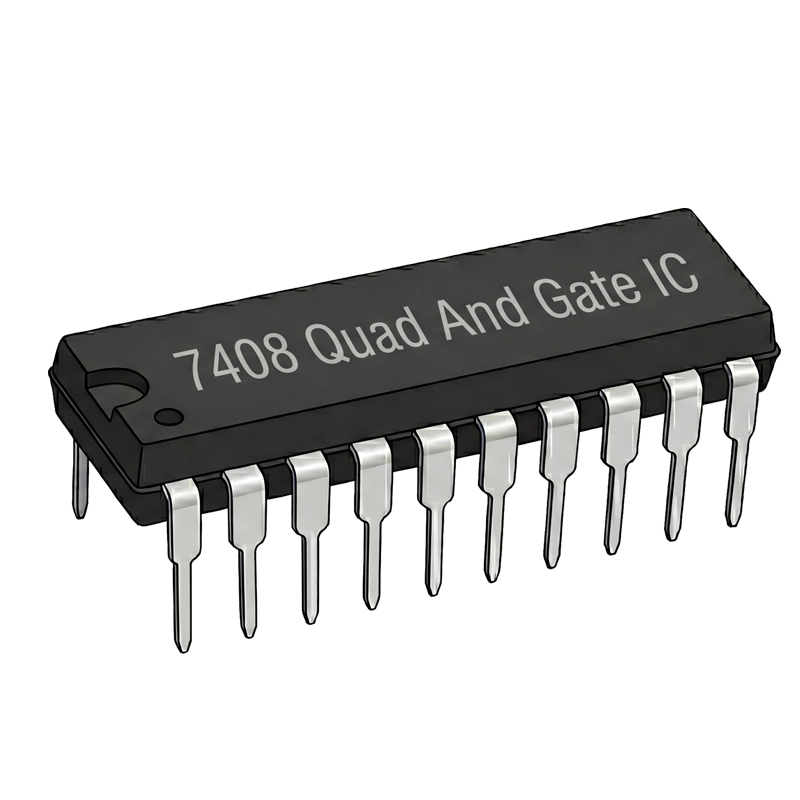

7408 Quad 2-Input AND Gate IC (DIP-14)

About 7408 IC

The 74HC08 is a reliable and high-speed CMOS logic IC designed to perform AND operations with precision. It features four independent 2-input AND gates packed into a compact 14-pin DIP package, making it a great choice for digital circuits, DIY electronics, and embedded projects.

Built with high-speed CMOS technology, this IC offers fast response times while maintaining low power consumption. Its buffered outputs ensure strong signal integrity and improved noise immunity, allowing stable performance even in demanding circuit conditions. The device is also compatible with standard 74LS logic series, making it easy to integrate into existing designs or upgrades.

With internal protection diodes on all inputs, the 74HC08 helps safeguard your circuits against static discharge and voltage spikes. Whether you’re working on logic control, signal processing, or learning digital electronics, this IC delivers dependable performance.

Key Features:

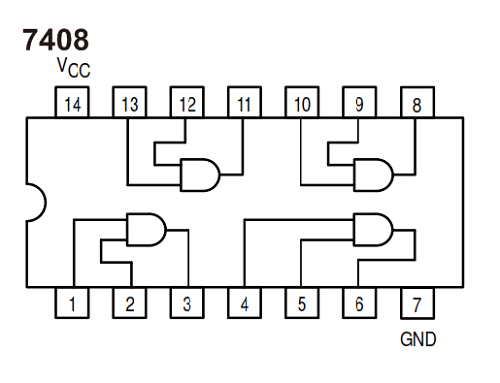

• Contains four independent 2-input AND gates
• High-speed CMOS operation for quick switching
• Strong noise immunity with buffered outputs
• Compatible with standard 74LS series logic
• Can drive multiple TTL loads efficiently
• Built-in input protection against static discharge

Technical Specifications:

• Mount Type: Through Hole
• Package: DIP-14
• Logic Function: AND
• Number of Pins: 14
• Operating Voltage Range: 2V to 6V
• Maximum Supply Voltage: 6V
• Operating Temperature Range: -40°C to +85°C

Package Includes:

• 1 × 74HC08 Quad AND Gate IC

This IC is a solid choice for students, hobbyists, and professionals looking for a dependable logic gate solution in their electronic designs.
