TTP223 Touch Sensor Module(Pack of 5)


4 in stock

  1. Input Voltage : 2 Volt – 5.5 Volts DC.
  2. The response time max ~ 60mS in fast mode, ~220mS at low power mode @VDD=3V.
  3. Sensitivity can adjust by the capacitance(0~50pF).
  4. Stable touching detection of the human body for replacing traditional direct switch key.
  5. Provides direct mode toggle mode by pad option(TOG pin).
  6. After power-on have about 0.5sec stable-time, during the time do not touch the keypad, and the function is disabled.
  7. Auto calibration and Re-calibration period is about 4.0 sec when the key has not be touched.

67.80 (Exc. GST)

4 in stock


About TTP223 Touch Sensor Module

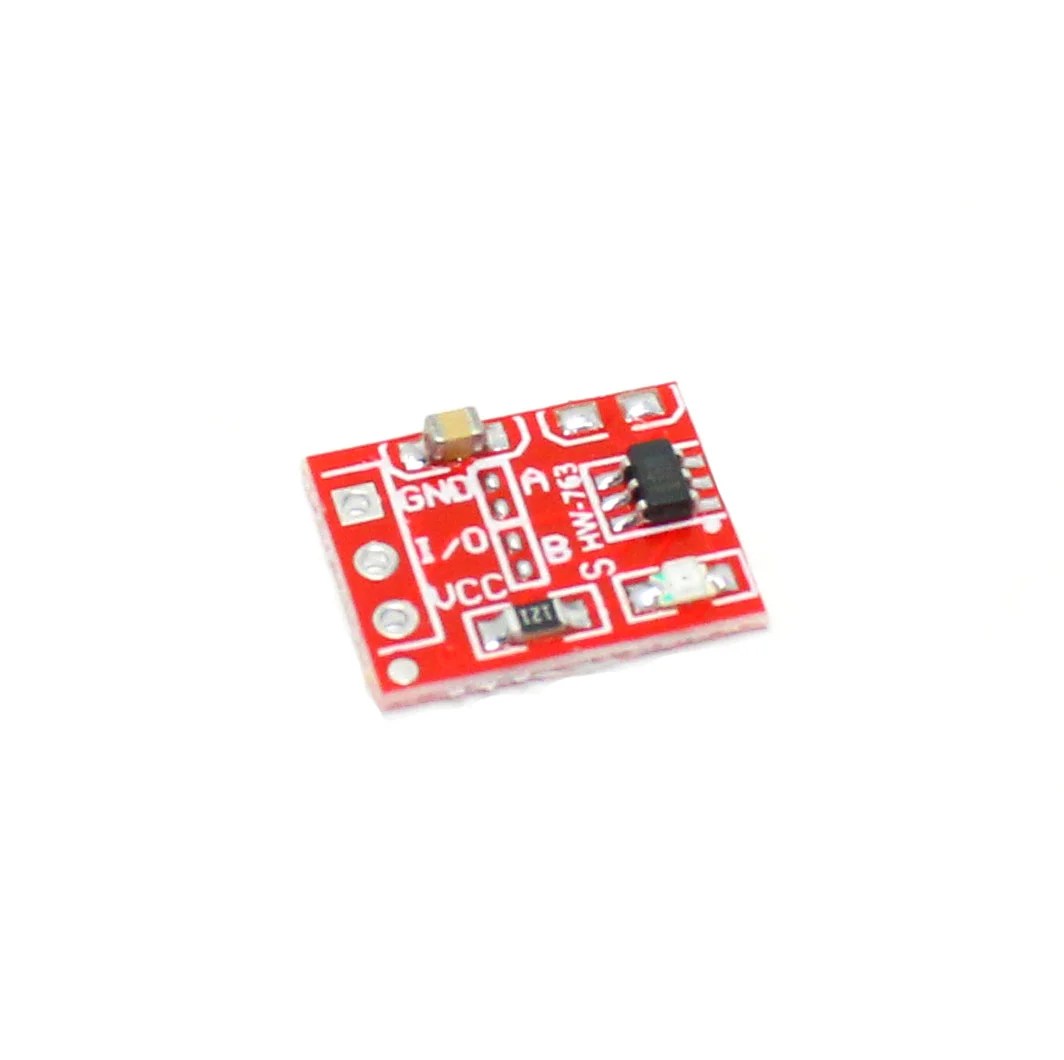

The TTP223 Touch Sensor Module (1 Channel) Red Color is based on a touch-sensing IC (TTP223) capacitive touch switch module. A capacitive touch sensor module based on the dedicated TTP223 touch sensor IC. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm.
An onboard LED will give a visual indication of when the sensor is triggered. When triggered the output of the module will switch from its idle low state to high (default operation). Solder jumpers allow for reconfiguring their mode of operation to be either active low or toggle output.
TTP223 Capacitive Touch Sensor Module. The TTP223 is a touchpad detector IC replicating a single tactile button.
The TTP223 is a touchpad detector IC replicating a single tactile button. This touch-detection IC is designed for replacing traditional direct button keys with diverse pad sizes.

Trigger-setting mode: (1- > Short ; 0- > No Short):-
AB=00: No-lock High TTL level output;
AB=01: Self-lock High TTL level output;
AB=10: No-lock Low TTL level output;
AB=11: Self-lock Low TTL level output;


Weight 0.002 kg
HSN Code


Operating Voltage (VDC) 2.5 ~ 5
Length (mm) 14
Width (mm) 10
Height (mm) 2
Weight (gm) 0.6
Shipment Weight 0.085 kg
Shipment Dimensions 3 × 3 × 1 cm
