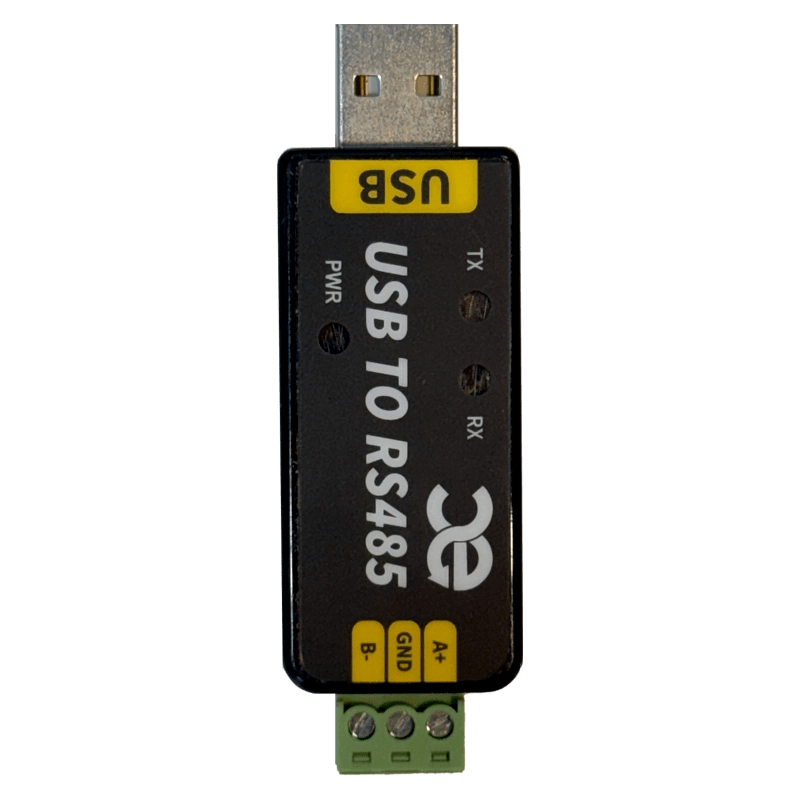

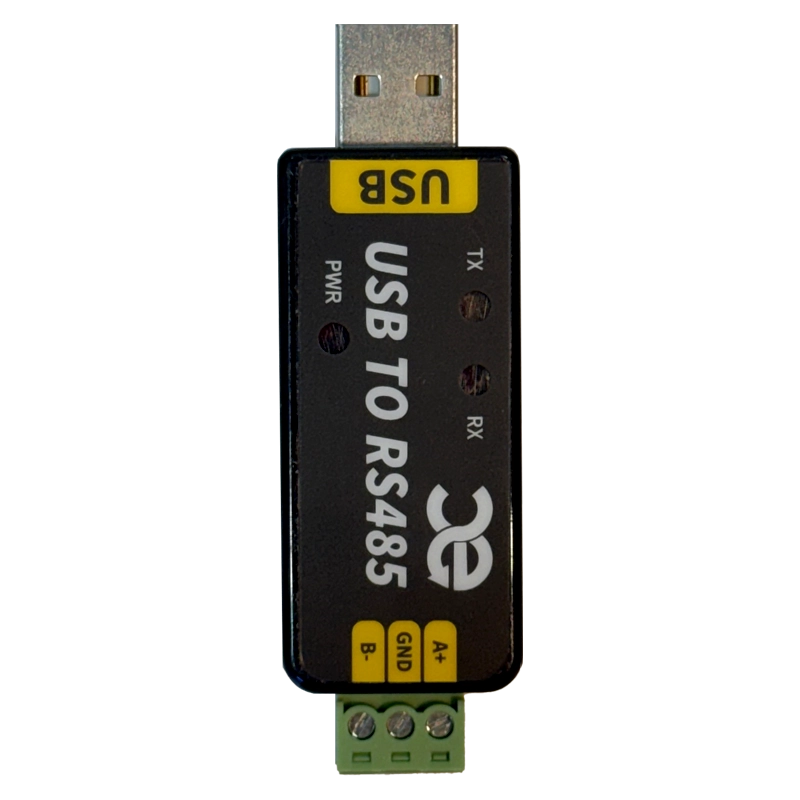

USB to RS485 Converter from CAPUF turns any standard USB port into a rock-solid industrial RS485/Modbus interface, letting you talk to PLCs, energy meters, sensors, and automation panels straight from your PC or laptop. Built for makers, engineers, and industrial integrators across India, this compact converter pairs a proven USB-to-UART bridge with a dedicated RS485 transceiver so your Modbus RTU network stays stable even in electrically noisy environments. If you’re searching for a dependable USB to RS485 converter that just works the moment you plug it in, this is it.
Technical Specifications
Here are the full specifications of this USB to RS485 converter, verified against the official datasheets:
| Parameter | Value |
|---|---|
| USB to UART Bridge | Silicon Labs CP2102 |
| UART to RS485 IC | Maxim MAX14783 |
| Interface | USB to RS485 |
| Surge Protection | 400W Peak Pulse Power |
| ESD Protection | Up to ±35kV HBM (chip-rated) |
| Supported RS485 Nodes | Up to 256 Nodes |
| LED Indicators | Power, RX, TX |
| Ground Terminal | Dedicated GND Pin |
| Operating Temperature | −40°C to +85°C |
| Dimensions | 70 x 25 x 17mm |
| Weight | 20g |
What Makes It Stand Out
At the core of this USB to RS485 converter sits the Silicon Labs CP2102, a widely trusted single-chip USB-to-UART bridge referenced in its official datasheet, paired with the Maxim MAX14783 half-duplex RS485 transceiver for the physical layer conversion.
This combination means your PC sees a clean virtual COM port while the RS485 side handles the differential signalling needed for long cable runs and noisy factory floors. For Modbus RTU projects, pair it with the open-source ModbusMaster library to start polling slave devices in minutes, no custom protocol stack required.
Add in 400W surge protection and industrial-grade ESD tolerance, and you get a converter that survives the kind of transients that kill cheaper, unprotected modules.
Why Makers Choose This
Whether you’re debugging a Modbus energy meter on the bench or commissioning a full industrial automation panel, this USB to RS485 converter drops straight into your existing setup with plug-and-play drivers and clear LED status feedback for power, RX, and TX activity.
New to RS485 wiring or Modbus polling on a microcontroller? This step-by-step RS485 tutorial walks through the wiring and code logic that applies directly to how you’ll use this converter with an ESP32 or Arduino-based master device.
Important Links
🔗 CP2102 Datasheet (PDF) — official Silicon Labs datasheet for the USB-UART bridge
🔗 MAX14783E Datasheet (PDF) — official Analog Devices/Maxim datasheet for the RS485 transceiver
🔗 ModbusMaster GitHub Library — Arduino/ESP32 library for Modbus RTU communication
🔗 ESP32 RS485 Tutorial — wiring and code walkthrough for RS485/Modbus projects
Best Used For
This converter shines in industrial automation setups where a PC or laptop needs to poll Modbus RTU devices like energy meters, VFDs, and PLCs over long cable runs. It’s equally handy for device testing and serial debugging on the bench, where you need a reliable way to sniff or inject RS485 traffic without building a custom transceiver circuit. Makers working on smart agriculture projects can use it to read data from RS485-based soil sensors, while home and building automation enthusiasts can bridge Modbus-enabled meters, HVAC controllers, or access panels back to a central PC or Raspberry Pi. It’s also a solid choice for firmware and protocol development, letting you test your Modbus master or slave code against real hardware before deploying it in the field.
Frequently Asked Questions
Q: Does this USB to RS485 converter work with Windows, Linux, and Mac?
Yes. The CP2102 chip is supported by royalty-free VCP drivers from Silicon Labs across Windows, Linux, and macOS, so it enumerates as a standard COM/serial port on all three.
Q: How many RS485 devices can I connect on one bus?
The onboard MAX14783 transceiver supports up to 256 nodes on a single RS485 bus, well above the standard 32-device limit of older transceivers.
Q: Do I need external drivers to use this converter?
You’ll need the standard CP2102 VCP driver (freely available from Silicon Labs), after which the device works as a plug-and-play serial port with any terminal or Modbus software.
Q: Is this converter suitable for industrial environments?
Yes, it includes 400W surge protection and high-voltage ESD protection on the RS485 lines, making this USB to RS485 converter well suited to electrically noisy industrial settings.
Q: Can I use this with Arduino or ESP32 for Modbus master/slave projects?
Absolutely. Connect it to your PC as the Modbus master and your Arduino/ESP32 (running a library like ModbusMaster) as the slave, or vice versa, over the RS485 bus.
