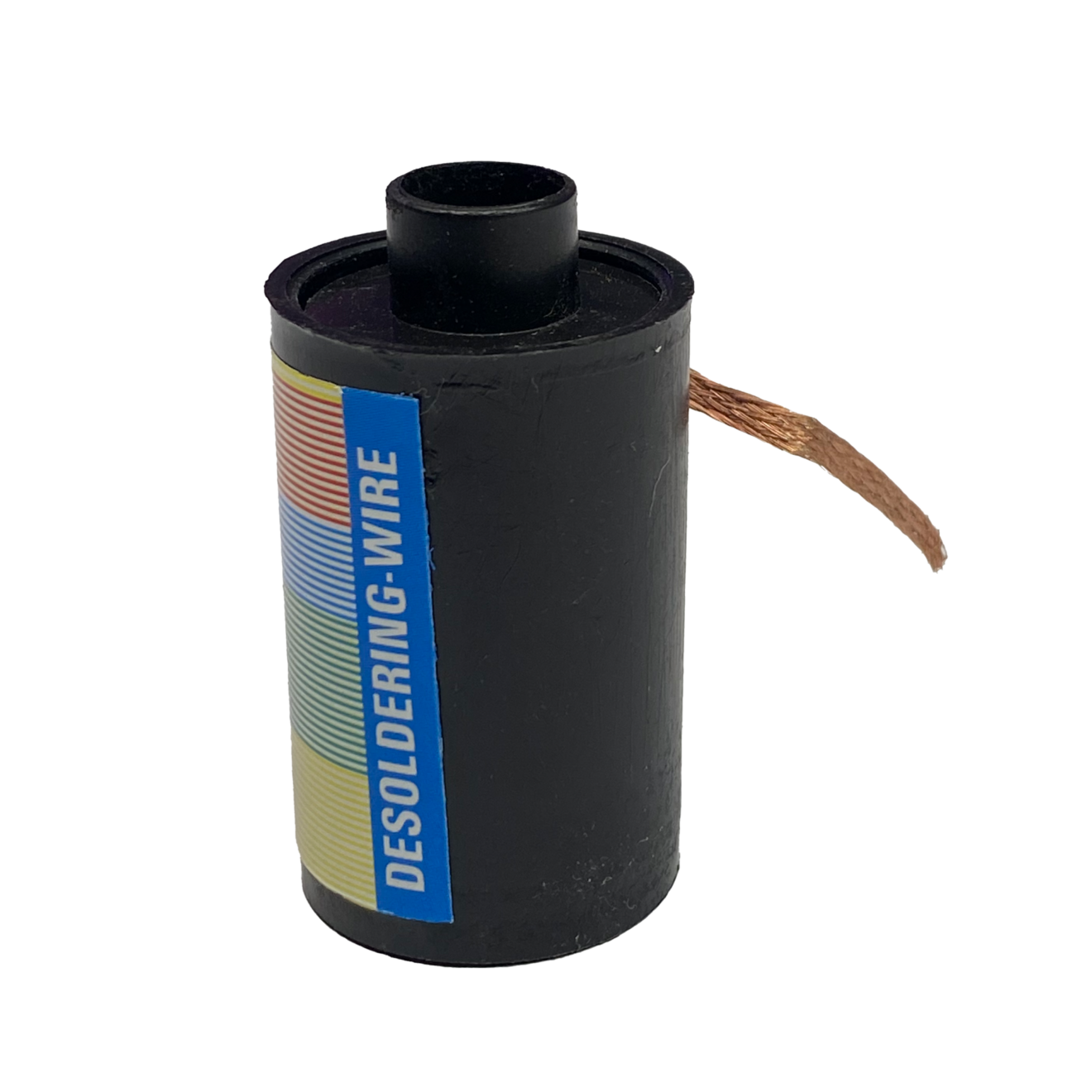

DeSoldering Wire (de-soldering wick) Superb Quality

Availability:

6 in stock


Wick Width: 2.5 mm
Length: 1.5 Meter
Material: Copper

33.90 42.37

6 in stock

Compare

Desolder wire is a critical tool in the world of electronics, allowing technicians and hobbyists to remove soldered components, make repairs, and perform upgrades with precision and ease. Whether you’re a beginner or an experienced electronics enthusiast, understanding how to use desoldering wire effectively is essential. In this guide, we’ll explore the step-by-step process of using desolder wire in electronics and provide tips for achieving clean and successful desoldering.

What is Desoldering Wire?

Desoldering wire, also known as solder wick or desolder braid, is a thin, braided wire coated with flux. Flux is a chemical agent that helps to remove solder and improve the soldering process. The primary purpose of desoldering wire is to absorb molten solder, making it easier to remove components, clean up excess solder, or correct soldering mistakes.

Materials and Tools

Before you begin desoldering, gather the following materials and tools:

  1. Desoldering wire (solder wick)
  2. Soldering iron with a fine tip
  3. Soldering station or soldering iron holder
  4. Safety glasses to protect your eyes
  5. Heat-resistant work surface or mat
  6. Component you want to desolder
  7. A small brush or a toothbrush for cleaning

Step-by-Step Guide to Using Desoldering Wire:

  1. Prepare Your Workspace: Begin by setting up your workspace on a heat-resistant surface, away from flammable materials. Ensure good lighting and proper ventilation.
  2. Safety First: Put on your safety glasses to protect your eyes from any solder splatter or fumes.
  3. Turn on Your Soldering Iron: Plug in your soldering iron and let it heat up to the appropriate temperature for the type of solder you’re working with. Generally, temperatures between 350°C to 400°C (660°F to 750°F) work well for most electronic soldering tasks.
  4. Identify the Solder Joint: Locate the solder joint you want to desolder. This could be a component lead, a wire, or any connection point you need to remove or modify.
  5. Prepare the Desolder Wire: Unroll a small length of desolder wire (about 5-10 cm or 2-4 inches) and cut it from the spool. Make sure the desoldering wire is clean and free from any debris or oxidation.
  6. Apply Flux (if necessary): If the solder joint doesn’t readily flow, you can apply a small amount of flux to the area. This helps improve the wetting action of the solder and makes desoldering more effective.
  7. Position the Desoldering Wire: Lay the desolder wire across the solder joint you want to remove. Ensure the braid covers the entire joint. Place your soldering iron’s tip on top of the desoldering wire, directly over the solder joint.
  8. Heat the Solder Joint: Press the soldering iron’s tip firmly onto the desolder wire and the solder joint beneath it. Maintain the heat for a few seconds to melt the solder.
  9. Capillary Action: As the solder melts, the flux in the desoldering wire helps draw the molten solder up into the braid through capillary action. You may see the solder being absorbed by the wire.
  10. Remove the Soldering Iron: Once the solder has been absorbed by the desolder wire, remove the soldering iron’s tip while keeping the wire in place.
  11. Inspect and Clean: Examine the solder joint to ensure it’s free of excess solder. If there’s still solder remaining, you can repeat the process until the joint is clean. Use a brush or toothbrush to clean any residue from the desoldered area.
  12. Dispose of Used Wire: After use, trim off the section of the wire with solder and dispose of it properly.

Tips for Successful Desoldering:

  1. Practice Makes Perfect: Desoldering can be a bit tricky, especially for beginners. Practice on old or scrap electronic components to improve your skills.
  2. Use the Right Size: Choose a desoldering wire that matches the size of the solder joint you’re working on. Thicker wire may not be as effective for smaller joints.
  3. Clean Your Soldering Iron Tip: A clean and well-tinned soldering iron tip conducts heat better and makes desoldering easier.
  4. Maintain a Steady Hand: Keep your hand steady while using the desoldering wire to avoid damaging the surrounding components or PCB traces.
  5. Use Flux Sparingly: While flux can aid in the desoldering process, excessive flux can leave a messy residue. Use it judiciously.
  6. Be Patient: Allow the solder to fully melt before removing the soldering iron’s tip. Rushing can result in incomplete desoldering.

In conclusion, desolder wire is an indispensable tool for anyone working with electronics. By following the steps outlined in this guide and practicing your desoldering skills, you can confidently tackle electronic repairs, modifications, and projects while achieving clean and successful desoldering outcomes. Remember to prioritize safety and maintain a clean and organized workspace for the best results in your electronics endeavors.

.


Package Includes:

1 x Solder Desoldering Wire (de-soldering wick)

You can Also Buy other tools from here

HSN Code

83113010

Material Copper
Wick Width (mm) 2.5
Shipment Weight 0.008 kg
