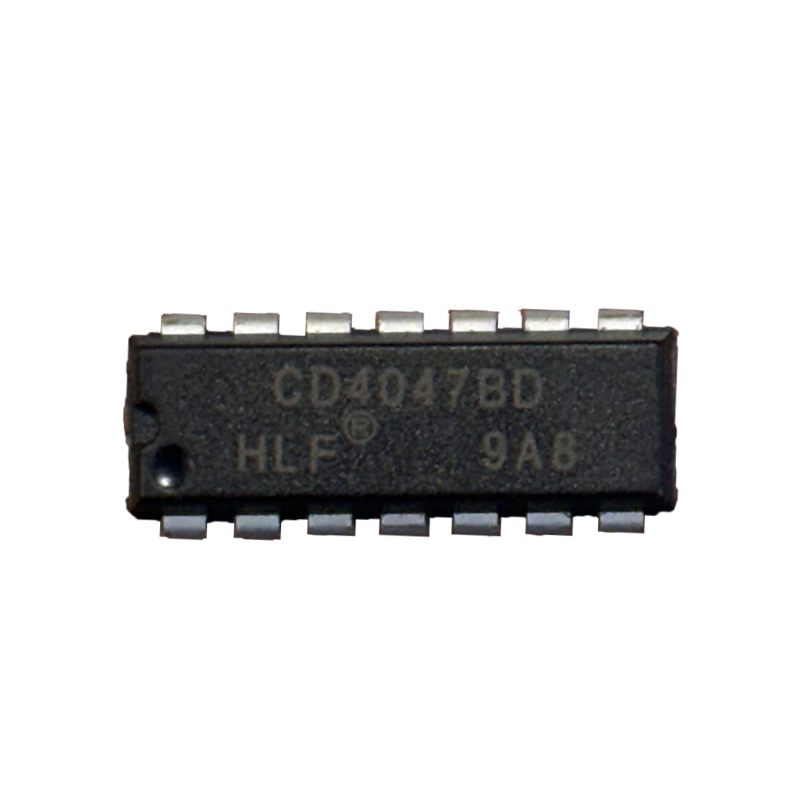

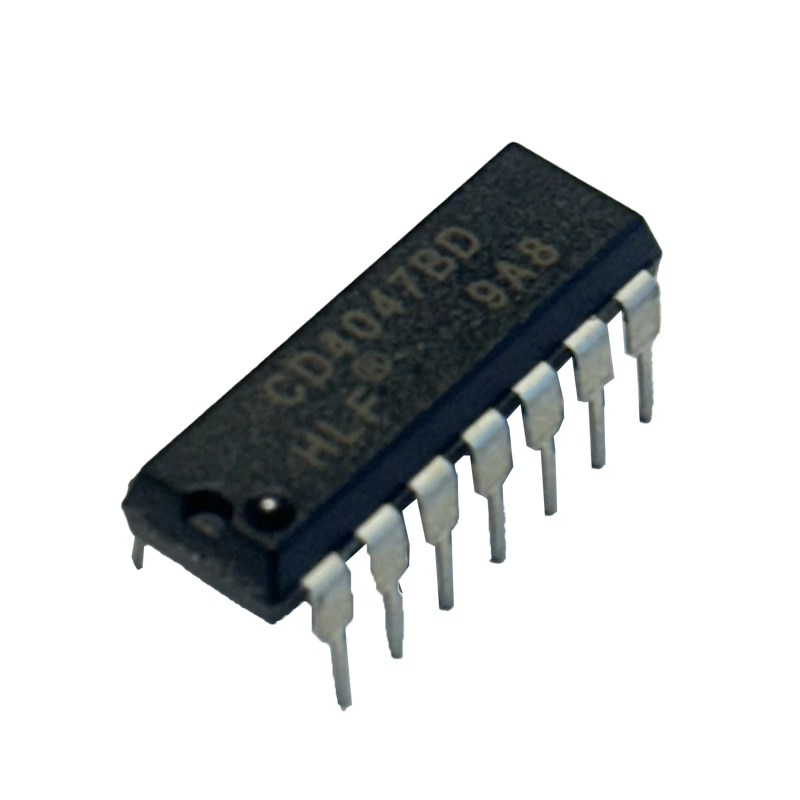

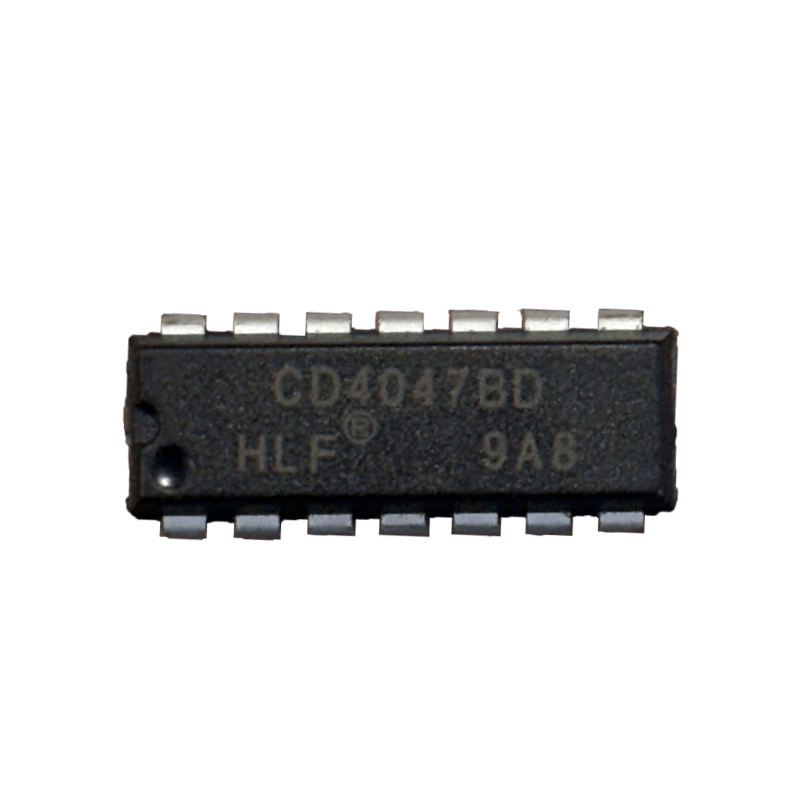

CD4047BE Monostable/Astable Multivibrator IC (DIP-14)

CD4047BE  | Monostable/Astable Multivibrator (DIP-14)

Unlock versatile timing and waveform generation with the CD4047BE Multivibrator from Texas Instruments. Designed to function in both monostable and astable modes, this IC offers flexibility in various digital timing applications such as oscillators, timers, pulse generators, and frequency dividers. Built on the reliable CD4000 logic family, the CD4047BE delivers consistent performance with a fast propagation delay of 125ns and output current of 6.8mA, all while operating over a wide voltage range of 3V to 18V. Encased in a 14-pin DIP package, it’s perfect for breadboarding and prototyping.

Whether you’re building precision digital timers or experimenting with pulse-width modulation, this IC provides a simple, stable solution for your design needs.

Key Features:

• Dual operation: Monostable & Astable modes
• Wide supply voltage: 3V to 18V
• Output current: 6.8mA
• Low power consumption
• Compact and easy-to-use DIP-14 package
• Operating temperature: -55°C to +125°C

Applications:

• Pulse generators
• Frequency dividers
• Timers and delay circuits
• LED and relay flashing circuits
• Digital clock signal sources

Pinouts

Package Includes:

• 1 × CD4047BE (DIP-14) – Multivibrator IC by Texas Instruments
