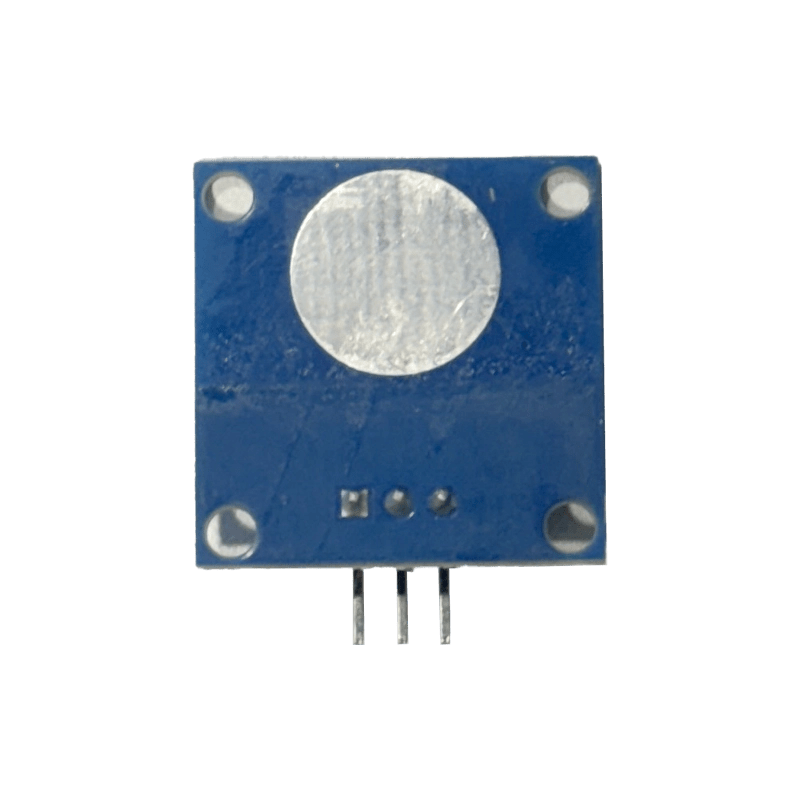

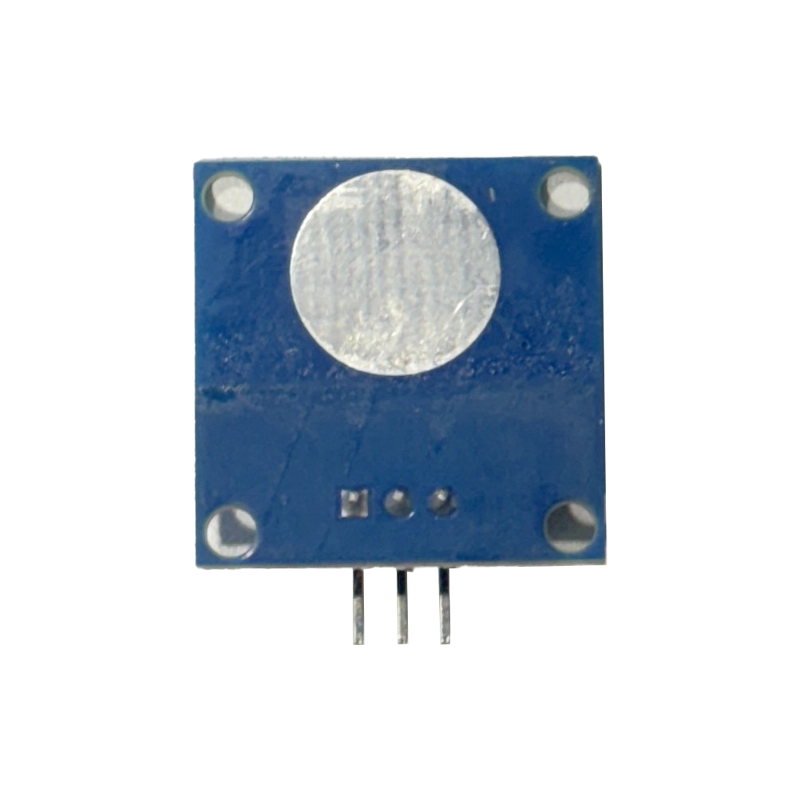

TTP223B Capacitive Touch Sensor Module

TTP223B Capacitive Touch Sensor Module

The TTP223B Capacitive Touch Sensor Module is a compact and easy-to-use touch switch module designed for modern electronic and DIY projects. Based on the TTP223B touch sensing IC, this module can replace traditional mechanical push buttons with a simple touch interface, providing smooth and reliable touch control.

The module detects human touch on the marked sensing area and outputs a digital HIGH signal when activated. Its low power consumption and fast response make it ideal for battery-powered applications, smart control panels, home automation systems, and interactive electronics projects.

The touch sensor can even work through thin non-metallic surfaces such as paper, acrylic, plastic, or wood, allowing hidden touch button designs for sleek and modern projects.

Features

• Based on TTP223B capacitive touch IC
• Replaces traditional push-button switches
• Low power consumption design
• Fast and reliable touch response
• Works through thin non-metallic surfaces
• Compact size with mounting holes for easy installation
• Suitable for Arduino and microcontroller projects

Specifications

• IC Chip: TTP223B
• Operating Voltage: 2V – 5.5V DC
• Output Type: Digital Signal
• Output High Voltage (VOH): 0.8 × VCC
• Output Low Voltage (VOL): 0.3 × VCC
• Response Time (Low Power Mode): 220ms
• Response Time (Touch Mode): 60ms
• Output Sink Current: 8mA
• Output Pull-up Current: 4mA
• Module Dimensions: 2.4cm × 2.4cm × 0.2cm

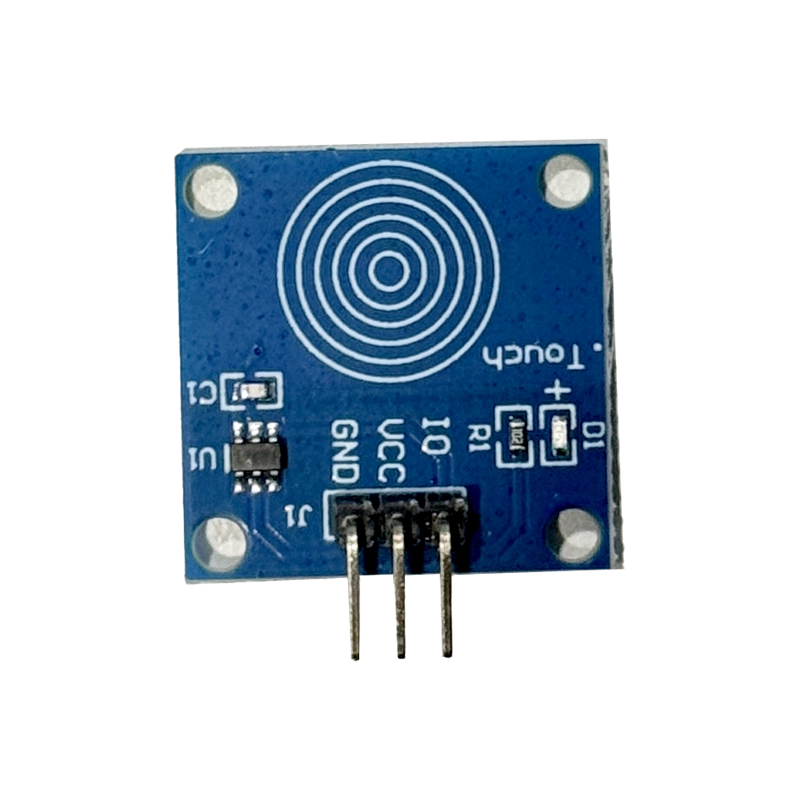

Interface Details

• GND: Ground connection
• VCC: Power supply input
• SIG: Digital signal output

Applications

• Touch control panels
• Smart home projects
• Arduino and ESP32 projects
• Interactive electronics
• DIY automation systems
• Hidden touch switch designs

Package Includes

• 1 × TTP223B Capacitive Touch Sensor Module

Note: Product images are for reference purposes only.
