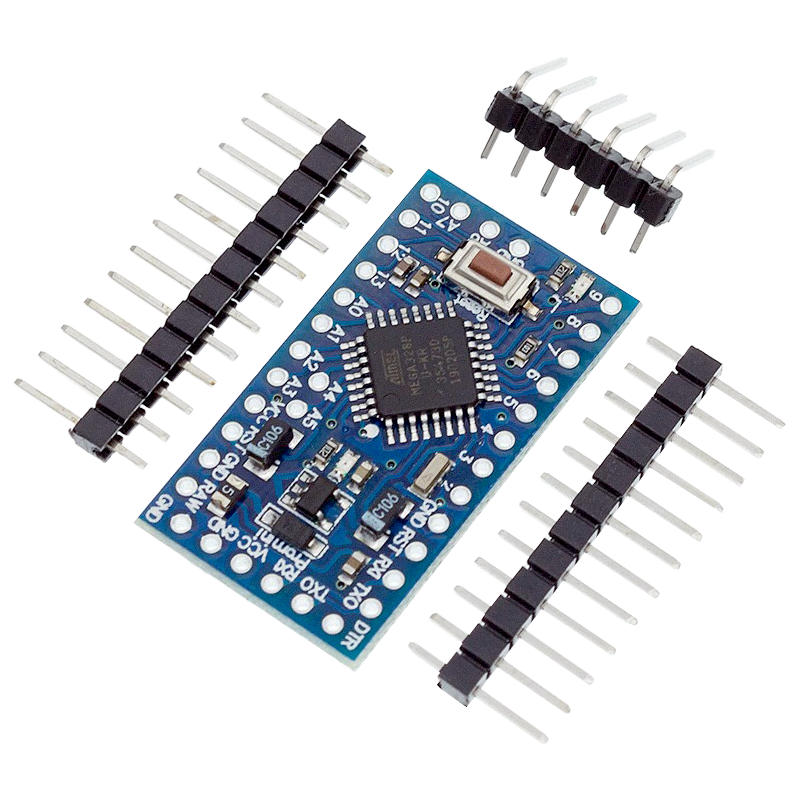

Pro Mini ATmega328P 5V 16MHz – Blue (Standard Version, Without Headers)

Pro Mini ATmega328P 5V/16MHz – Blue (Standard Version)

Looking for a compact and reliable microcontroller for your embedded projects? The Pro Mini ATmega328P 5V/16MHzis a space-saving board that delivers full Arduino functionality without unnecessary extras. It’s designed for users who are familiar with microcontroller basics and want a board that’s ready for customization.

This version does not include headers, giving you the flexibility to solder exactly what you need — ideal for tight installations or permanent projects.

⚠️ Note: If you’re new to Arduino, we suggest starting with the Arduino Uno R3 for an easier, plug-and-play experience.

Technical Specs

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Clock Speed: 16 MHz (external resonator, ±0.5%)
• Digital I/O Pins: 14 (6 PWM-capable: D3, D5, D6, D9, D10, D11)
• Analog Inputs: 6
• Current Output (Regulator): Max 150mA (with overcurrent protection)
• Power Input: 5V–12V (via RAW pin)
• Communication: Requires FTDI or USB-to-Serial Adapter
• PCB Thickness: Ultra-slim 0.8mm
• Weight: <2g
• Additional Features: Onboard power & status LEDs, reset button

What You Get

• 1 × Pro Mini ATmega328P 5V/16MHz (Blue – Standard Version)

 Recommended Use

• Space-constrained designs
• Embedded systems
• Semi-permanent installations (exhibits, gadgets, wearables)
