MaTouch ESP32-S3 SPI IPS 2.8″ with Camera OV3660
With the 3 million (3MP) pixel camera (ov3660), it can shoot a maximum of 2048×1536 resolution photos& videos, suitable for smart applications such as remote monitoring/face detecting, etc.. Also this module support the LVGL well.
₹2,999.00 ₹3,389.83
(ex. GST)

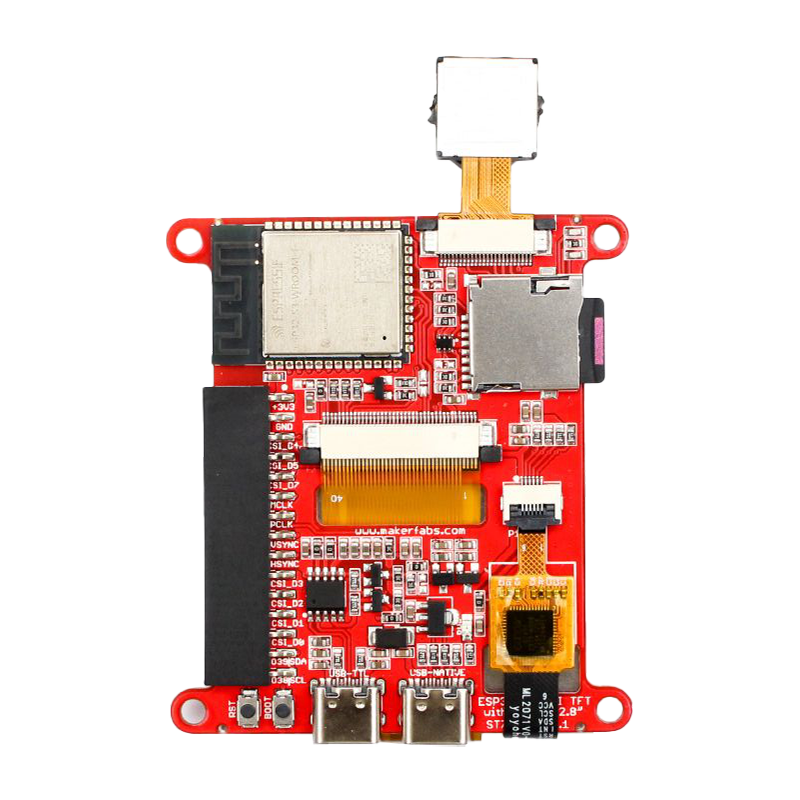

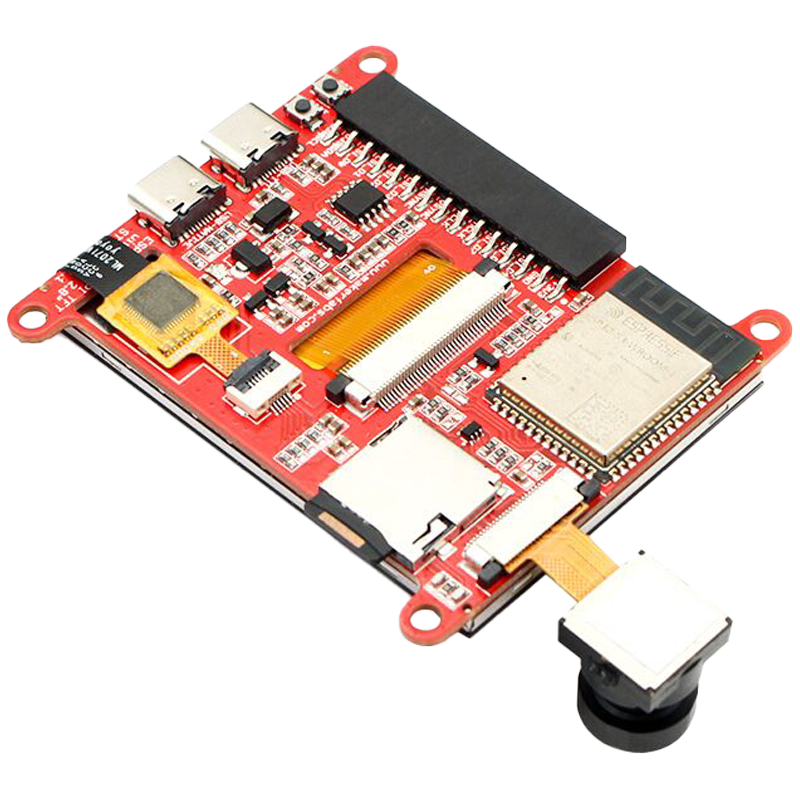

About MaTouch ESP32-S3 SPI IPS 2.8″ with Camera OV3660
This MaTouch ESP32-S3 SPI IPS 2.8″ with Camera OV3660 packs a 2.8” capacitive touchscreen, a 3MP camera, and the powerful ESP32-S3 into a compact form—ready to handle smart applications like face detection, remote monitoring, or anything that needs a slick UI and sharp visuals.
Using SPI for the display and I2C for touch, it keeps GPIO usage low, giving you more flexibility to connect sensors, peripherals, or whatever your project calls for.
Oh, and there’s microSD storage built right in, so you can skip the extra hardware.
What Makes It Awesome:
- 3MP Camera (OV3660) – Capture high-res images & video (2048×1536 max)
- Responsive Touch – 5-point capacitive panel powered by GT911
- Smooth UI Support – Works great with LVGL for beautiful interfaces
- WiFi + Bluetooth 5.0 – Built-in wireless for remote control, OTA updates, and more
- microSD Slot – Store pictures, logs, or UI assets with ease
- Arduino-Compatible – Fast to prototype, easy to scale
Quick Specs:
- Controller: ESP32-S3
- Display: 2.8″ TFT (320×240), ST7789V (SPI)
- Touch: Capacitive, 5-point, GT911 (I2C)
- Camera: OV3660, 3MP, DFOV 66.5°
- FPS: >30
- Memory: 16MB Flash + 8MB PSRAM
- Connectivity: WiFi + Bluetooth 5.0
- USB Ports: UART + Native USB
- Storage: microSD slot
- Power: USB-C (5V input)
- Buttons: Reset & Flash
- Expansion: GPIO + I2C
- Temp Range: -40°C to +85°C
- Supports: Arduino
Important Links
| Weight | 0.06 kg |
|---|---|
| Dimensions | 15 × 15 × 5 cm |
