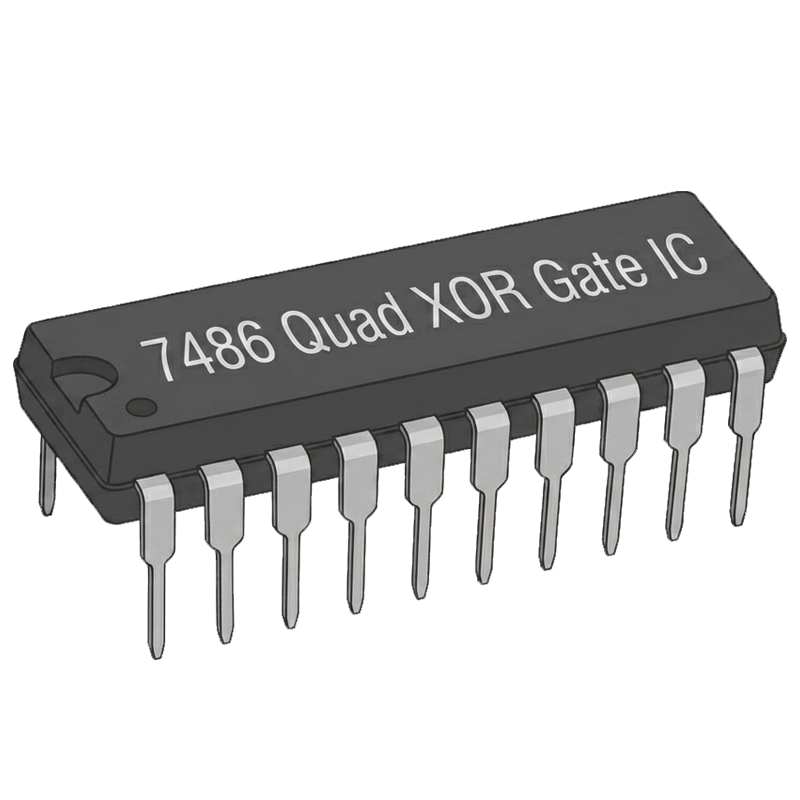

7486 Quad 2-Input XOR Gate IC (DIP-14)

About 7486 IC

The 7486 is a reliable quad 2-input XOR (Exclusive-OR) gate IC designed for digital logic applications. It contains four independent XOR gates within a single compact DIP-14 package, making it ideal for space-efficient circuit designs.

Each gate performs the Exclusive-OR function, producing a HIGH output only when the two inputs are different. This makes the IC especially useful in applications like parity checking, digital comparison, signal processing, and logic control circuits.

Built with input clamp diodes, the IC allows safe interfacing with voltages higher than VCC using current-limiting resistors, enhancing its flexibility in mixed-voltage environments. Designed to meet JEDEC standards, the 74HC86 ensures stable performance and compatibility across a wide range of electronic projects.

Whether you’re building educational circuits or advanced digital systems, this IC offers dependable performance and easy integration.

Key Features:

• Quad 2-input Exclusive-OR (XOR) gates in one package
• Supports both 74HC86 and 74HCT86 variants
• Built-in input clamp diodes for voltage protection
• Compatible with standard digital logic levels
• Complies with JEDEC standard No. 7A
• Compact DIP-14 package for easy mounting

Technical Specifications:

• IC Type: Logic Gate IC
• Gate Type: XOR (Exclusive-OR)
• Number of Gates: 4
• Supply Voltage: −0.5V to +7V
• Input Clamping Current: ±20 mA
• Output Clamping Current: ±20 mA
• Power Dissipation: 500 mW
• Storage Temperature: −65°C to +150°C

Package Includes:

• 1 × 7486 Quad 2-Input XOR Gate IC (DIP-14)

This IC is a great choice for hobbyists, students, and engineers looking for a dependable XOR logic solution in compact form.
