Description

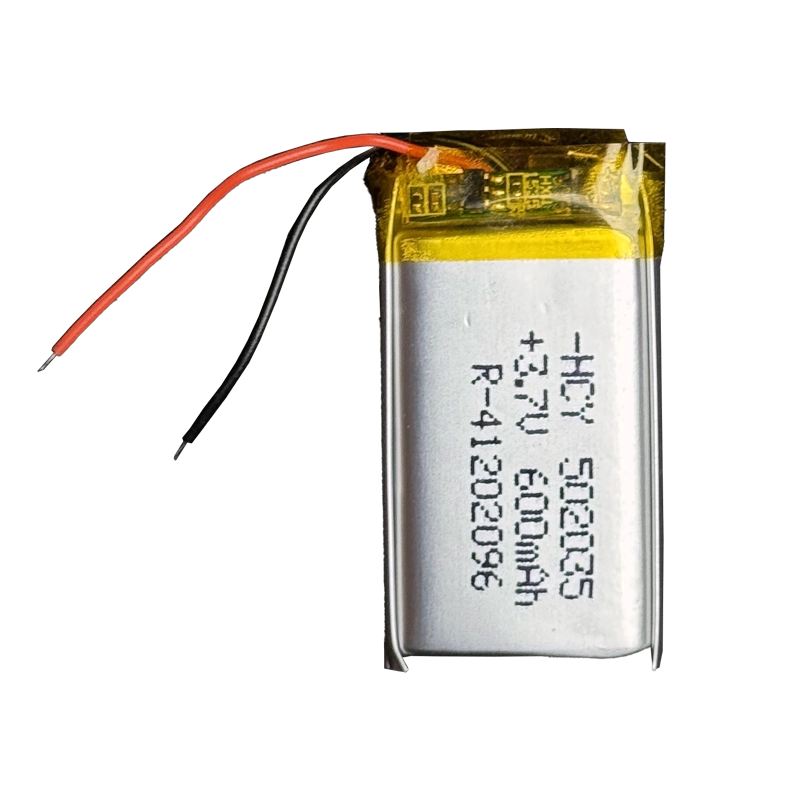

Introducing our 600 mAh single-cell Lithium-ion Polymer (Li-Po) battery, perfect for powering your compact gadgets and IoT devices. Its slim, lightweight 502035 form factor makes it an excellent choice for wearables, sensor nodes and other space-constrained electronic projects.
Specifications:
- Model: 502035
- Capacity: 600 mAh
- Dimensions: 5.0 x 20 x 35 mm (Thickness x Width x Height)
- Nominal Voltage: 3.7V
- Fully Charged Voltage: 4.2V
- Discharge Cut-off Voltage: 3.0V
- Protection Circuitry: Built-in to prevent overcharging and over-discharging
- Connector Type: No connector (bare wire leads)
About This Li-Po Battery
Designed for small-capacity applications, this battery comes with built-in protection circuitry for safe operation. Charge it with a Li-Ion/LiPo constant-current/constant-voltage (CC/CV) charger at a recommended rate of 300 mA, up to a maximum of 600 mA.
Key Characteristics
- Lightweight Design: Ideal for portable and space-constrained projects.
- High Energy Density: Delivers reliable power from a compact 5 mm thin cell.
- Safe and Reliable: Includes protection against overcharging and over-discharging.
- Versatile Use: Fits easily into IoT applications, sensors and small devices.
Applications
- Wearable Electronics
- Small IoT Devices
- Sensors and Embedded Systems
- Bluetooth Trackers and Remote-Controlled Toys
Note:
- Product images may vary slightly in size and color.
- Compatible with TP4056 charging modules. The standard TP4056 module charges at 1A, which is too high for a 600 mAh cell. Replace the RPROG resistor with a 2 kΩ resistor to set about 580 mA.
- Refer to our guide for proper usage and handling of Li-Po batteries.
