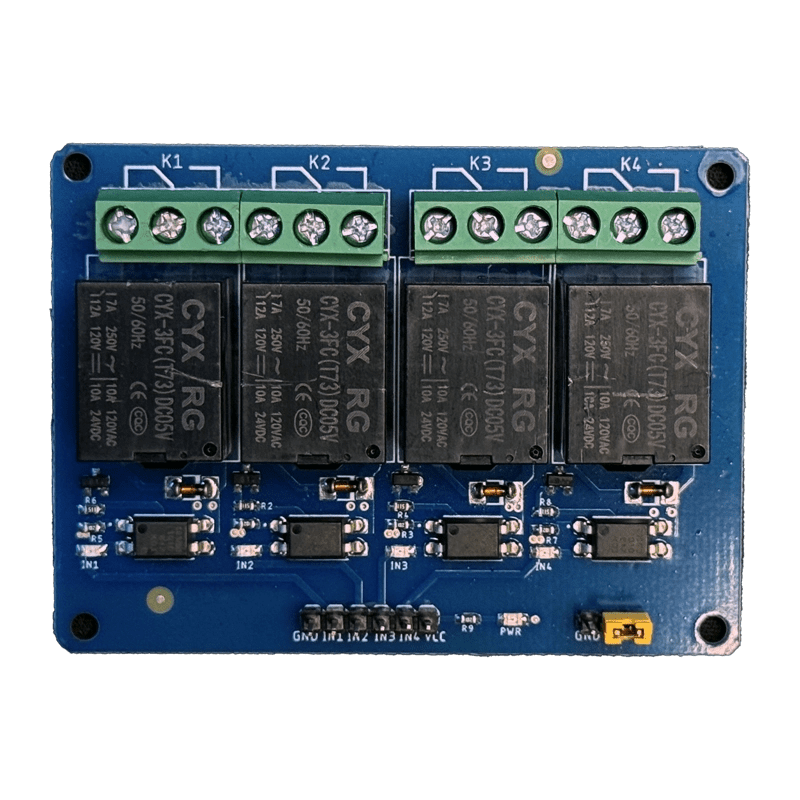

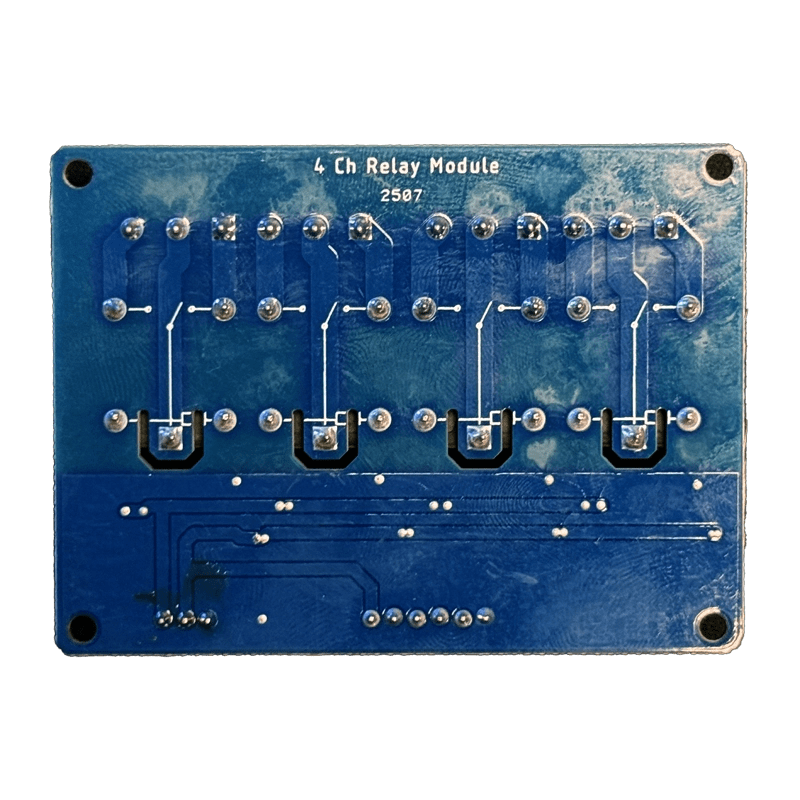

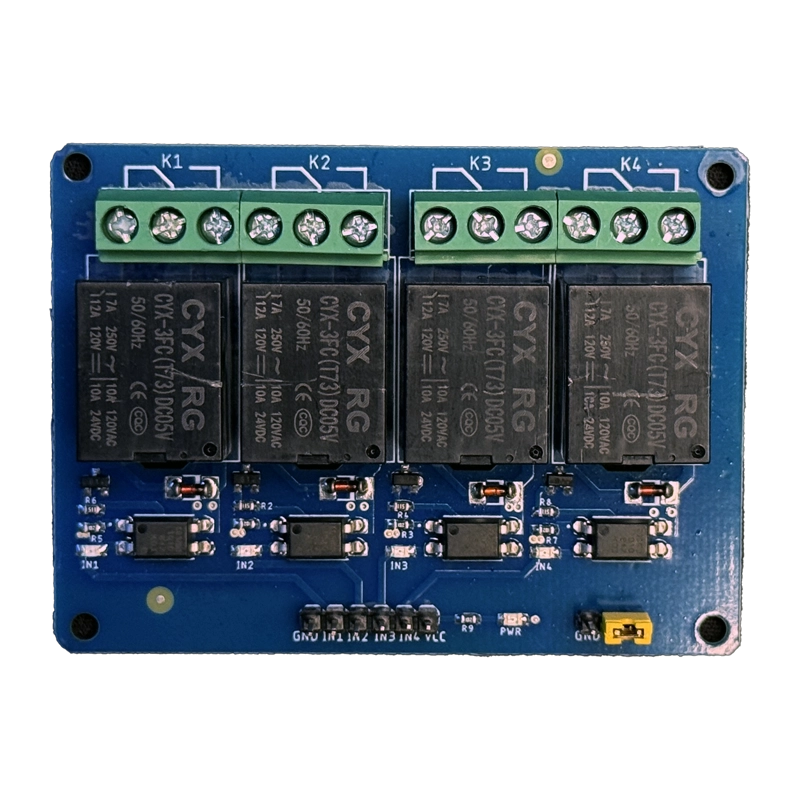

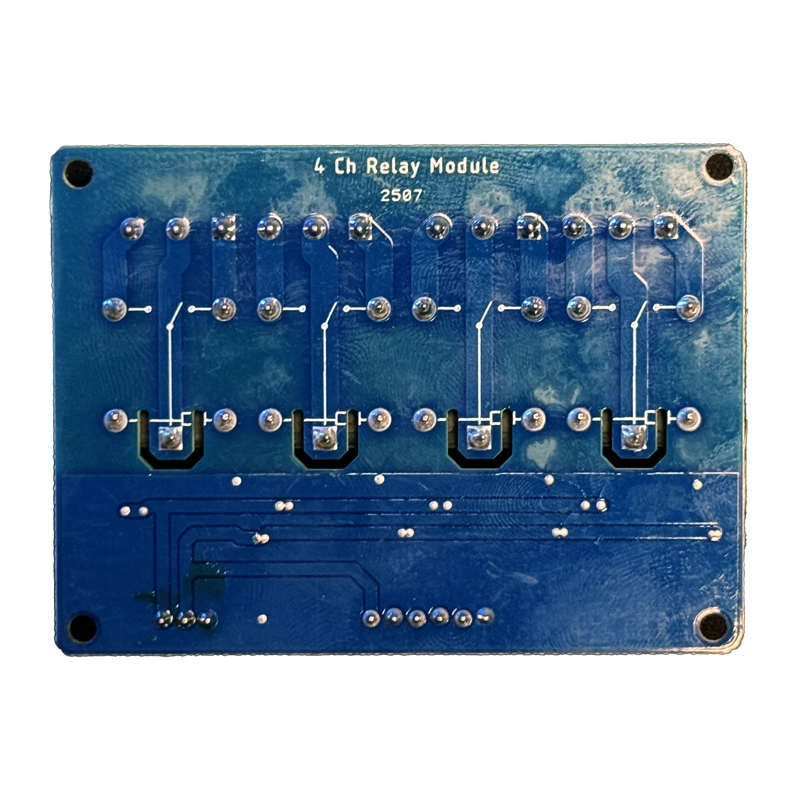

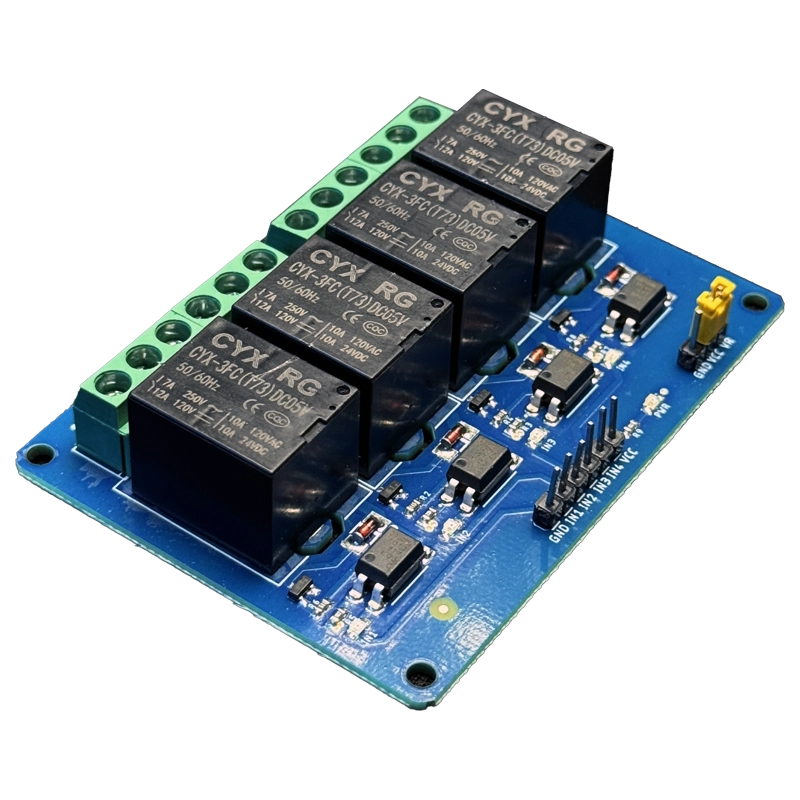

4 Channel Relay Module Isolated Optocoupler 5V 10A


  1. One normally closed contact and one normally open contact
  2. Triode drive, increasing relay coil
  3. High impedance controller pin
  4. Pull-down circuit for the avoidance of malfunction
  5. Power supply indicator and Control indicator lamp
  6. Power supply and relay instructions, lit, the disconnect is off;
  7. The input signal, signal, common Terminal and start conducting;
  8. Useful for appliance control;
  9. DC or AC signal, control, you can control the 220V AC load;
  10. There is a normally open and one normally closed contact;
  11. The module is compliant with international safety standards, control and load areas isolation trenches.

122.88 139.83

Compare

About 4 channel Relay Module

It is a 4 Channel Relay Module with Optocoupler, A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. It is also able to control various appliances and other types of equipment with a large current.

Relay output maximum contact is AC250V 10A and DC30V 10A. One can connect a microcontroller with standard interface directly to it. Red working status indicator lights are conducive to the safe use. It has a wide range of applications such as all MCU control, industrial sector, PLC control, smart home control.

Each relay can individually switch on/off by an opto-isolated digital input, which that can connect directly to a microcontroller output pin. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 5V. This makes it ideal for 1.0V to 5V devices.


Features :

  1. One normally closed contact and one normally open contact
  2. Triode drive, increasing relay coil
  3. High impedance controller pin
  4. Pull-down circuit for the avoidance of malfunction
  5. Power supply indicator and Control indicator lamp
  6. Power supply and relay instructions, lit, the disconnect is off;
  7. The input signal, signal, common Terminal and start conducting;
  8. Useful for appliance control;
  9. DC or AC signal, control, you can control the 220V AC load;
  10. There is a normally open and one normally closed contact;
  11. The module is compliant with international safety standards, control and load areas isolation trenches.

Package Include :

1 x  4 Channel Relay Module

SKU: TDF6-003 Categories: ,
Weight 0.052 kg
