Sensors
Showing all 19 results
-
Electronic Components, Sensors
20A Range Current-Sensor Module ACS712 Good Quality
- Low-noise analog signal path
- Device bandwidth is set via the new FILTER pin
- 5 µs output rise time in response to step input current
- Small footprint, low-profile SOIC8 package
- 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
- Supply Voltage: 4.5V~5.5V DC
- Measure Current Range: 20A
- Sensitivity: 100mV/A
SKU: S-6019 -
Sensors
BMP280 Barometric Pressure and Altitude Sensor I2C/SPI Module
- Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V.
- Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C).
- Peak current: 1.12mA.
- Operating Pressure: 300 hPa to 1100 hPa.
- Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m.
SKU: S-6014 -
Electronic Components, Sensors
EM-18 RFID READER MODULE
- Operating Voltage: 5V DC Supply
- Reading Distance: 6-10 cm.
- Read frequency: 125 kHz.
- EM4001 64–bit RFID tag compatible.
- 9600bps ASCII output.
- Current : <50 mA
- Operating Frequency: 125 kHz
- Read Distance: 5 cm
- Compatible Tags: 125KHz EM4100 Tags
- Size : 32mm(length) * 32mm(width) * 8mm(height)
SKU: S-6018 -
Sensors, Electronic Components
LM393 Photosensitive Light-Dependent Control Sensor LDR Module
- LDR module 4 PIN
- Operating voltage 3.3V-5V
- Signal output indicator light.
- LDR module 4 PIN
- Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
SKU: S-6017 -
Sensors, Electronic Components

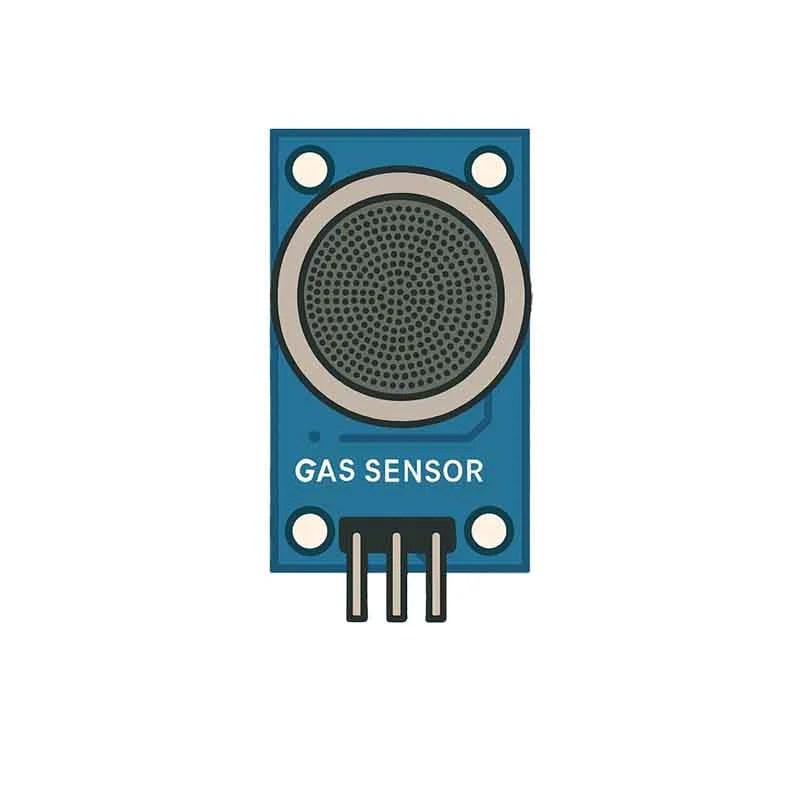

MQ 135 Air Quality/Gas Detector Sensor Module For Arduino
- Sensitivity to Ammonia, Sulphide, and Benzene steam
- Sensitive for benzene, alcohol, smoke
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator
- Output voltage boosts along with the concentration of the measured gases increases.
SKU: S-6016 -
Electronic Components, Sensors
BMP180 Barometric Pressure Sensor Module compatible with Arduino
- 1.8V to 3.6V Supply Voltage
- Low power consumption – 0.5uA at 1Hz
- I2C interface
- Max I2C Speed: 3.5Mhz
- Very low noise – up to 0.02hPa (17cm)
- Fully calibrated
- Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
SKU: S-6003 -
Electronic Components, Sensors
DHT11 Temperature and Humidity Sensor Module
DHT11 is a low-cost digital sensor for sensing temperature and humidity. This sensor can be easily interfaced with any micro-controller such as Arduino, Raspberry Pi etc to measure humidity and temperature instantaneously.
SKU: S-6001 -
Electronic Components, Sensors
DS18B20 Water Proof Temperature Sensor Probe Good Quality
- A probe by new original installation import DS18B20 temperature sensor chip.
- Chip each pin use heat shrinkable tube to prevent short circuit, internal sealing glue, waterproof, moistureproof.
- Stainless steel tube encapsulation waterproof moistureproof prevent rust.
- Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use stability.
- Without the external components, the unique single bus;
SKU: S-6005 -
Sensors, Electronic Components
MAX30102 PULSE OXIMETER HEART-RATE SENSOR MODULE GY-MAX30102
Specifications and Features:
- Optical sensor: IR and red LED combined with a photodetector
- Measures absorbance of pulsing blood
- I2C interface plus INT pin
- 3.3V power supply complete pulse oximeter and heart rate sensor solution, simplifies design, integrated LEDs, photo sensor, and
- high-performance analog front
- Ultra low power operation increases battery life for wearable devices
- Advanced functionality improves measurement performance, high SNR provides robust motion artifact resilience integrated
- ambient, light cancellation high sample rate capability fast data output capability
- It is an integrated pulse oximetry and heart rate monitor sensor solution.
SKU: S-6012 -
-
Electronic Components, Sensors
Pulse Sensor – Heart Rate Sensor Amped
Features :
- A Color-Coded Cable, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required.
- The Pulse Sensor has 3 holes around the outside edge which make it easy to sew it into almost anything.
- Visualization software (made in Processing) to instantly see the output of the sensor and for troubleshooting.
SKU: S-6013 -
-
Electronic Components, Sensors
RC522 RFID 13.56MHZ Reader Writer Module
- Voltage: DC 3.3V (Do not use 5V supply)
- Operating Current:13-26mA
- Idle Current:10-13mA
- Operating Frequency: 13.56MHz
- Highly integrated analog circuitry to demodulate and decode responses
- Supports ISO/IEC 14443 A/MIFARE
- Typical operating distance in reading/Write mode is up to 50 mm
SKU: S-6002 -
Electronic Components, Sensors
TTP223 Touch Sensor Module(Pack of 5)
- Input Voltage : 2 Volt – 5.5 Volts DC.
- The response time max ~ 60mS in fast mode, ~220mS at low power mode @VDD=3V.
- Sensitivity can adjust by the capacitance(0~50pF).
- Stable touching detection of the human body for replacing traditional direct switch key.
- Provides direct mode toggle mode by pad option(TOG pin).
- After power-on have about 0.5sec stable-time, during the time do not touch the keypad, and the function is disabled.
- Auto calibration and Re-calibration period is about 4.0 sec when the key has not be touched.
SKU: S-6007
