Universal TTL Auto Programmer

599.00

This single programmer will help you to program multiple microcontroller chips/boards. This board got dedicated slots for programming

  • ESP32 Cam Board
  • ESP32/ESP8266 Chip
  • Arduino Pro mini

Along with that, it also got a dedicated pinout of a regular TTL programmer using which you can program almost all the microcontroller chips. This simplifies the programming of the Microcontroller significantly since no manual reset and boot mode selection is needed when using with a common USB to serial interface. It’s a must have tool for all IOT and Electronics Engineers.



Description

Product Description

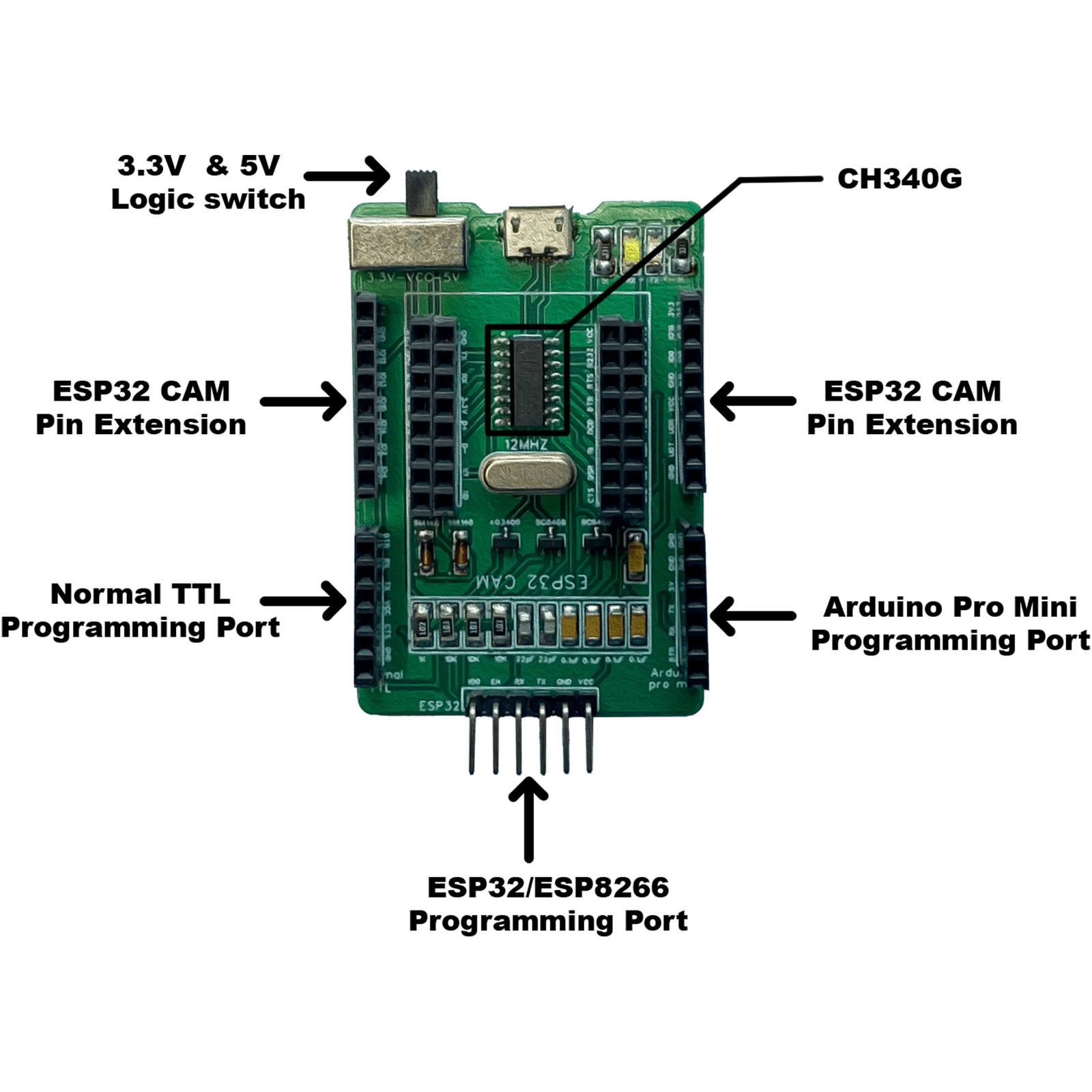

Features

  • Dedicated port for programming ESP32 Cam
  • Extended ESP32 Cam pinouts for testing project on board
  • Extended CH340G Pinouts for Debugging purpose and further use cases
  • Dedicated port for programming ESP32/ESP8266 Chips
  • Dedicated port for programming Arduino Pro mini board
  • Dedicated port for USB to TTL pins for programming other boards
  • Supports 3.3V and 5V Logic

Required Driver

In case your computer doesn’t recognises the Programmer board, try to install the CH340G driver on your system which you can easily find on this page

Connections with Several Microcontroller boards

Programming Arduino Pro Mini

Programming Generic ESP8266

Programming ESP32 Wroom32 chip

Programming ESP8266 12e chip

Making of the Programmer

You can learn in detail about how this programmer works and how to make one by yourself by watching it’s complete tutorial video which is uploaded on our YouTube Channel
