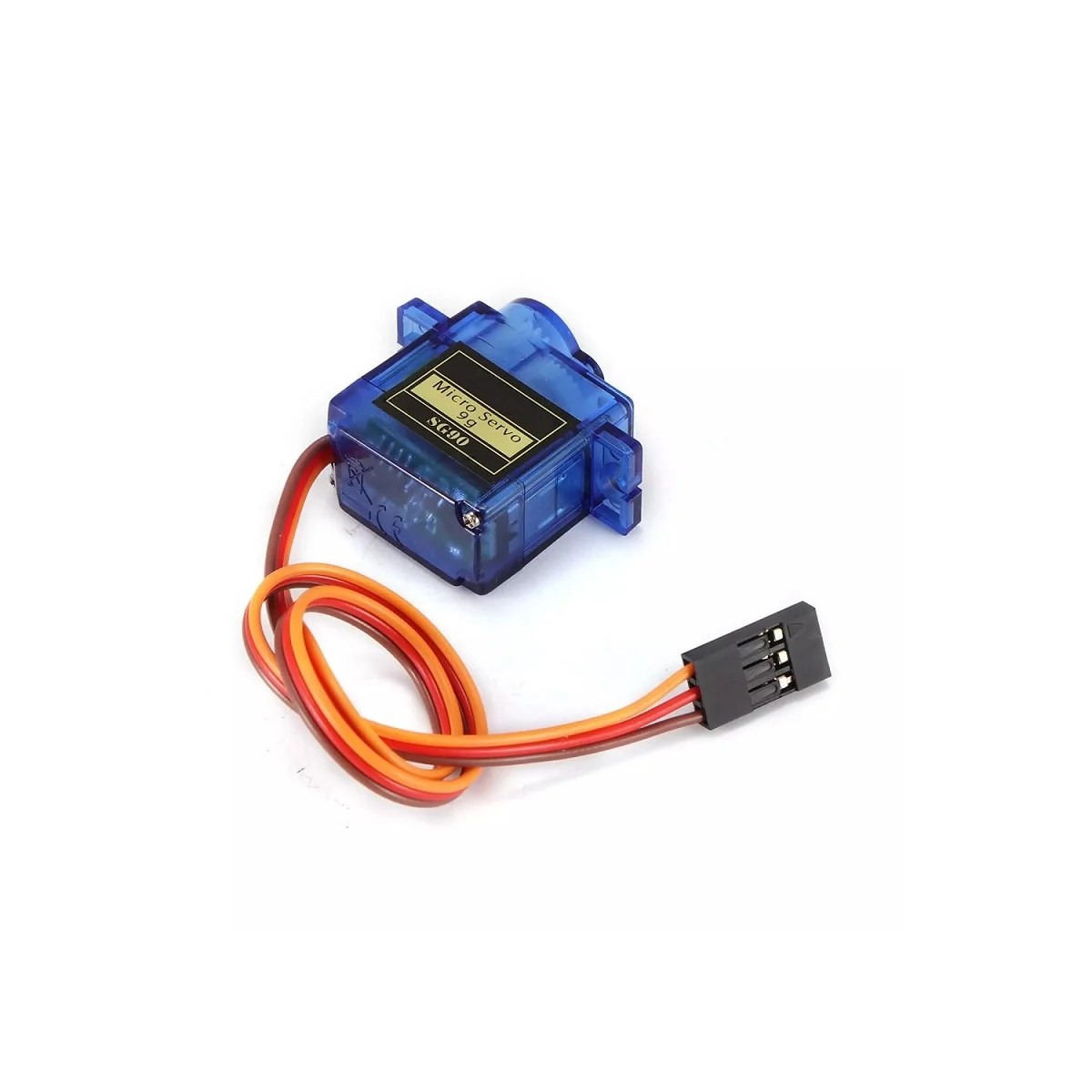

Tower Pro SG90 Servo – 9 gms Mini/Micro Servo Motor (180° Rotation)

Add to wishlist
Compare
  1. Item Name: SG90 Mini Analog Servo
  2. Operating Speed (4.8V no load): 0.12sec/60 degrees
  3. Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
  4. operating voltage: 3.0-7.2V
  5. Temperature range: -30℃~60℃
  6. Dead band width: 7us
  7. Item size: 3.2 x 3 x 1.2cm
  8. Item weight: about 9g
  9. Connector wire length: 24.5cm

₹88.98 ₹118.64

Compare

About SG90 Servo motor

Get your start in robotics and make things move! This analog micro servo will rotate up to 180 degrees (90 in each direction). You can expect it to operate the same as standard versions, but this micro servo is much smaller and can fit into tighter spaces. Its lightweight (9g) design will still output a high amount of power. This servo will work with any servo library, code, or compatible hardware.

The SG90 mini servo is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat, and truck use.

Each servo comes with 3 arms and screws and with pre-soldered female wires. When using servos, we recommend using pin 9 or 10, a standard in the Servo library.

It’s easy to fry servos, make sure you plug it into your brain correctly.

Pinouts

  • PWM (Signal) is Orange
  • VCC (Power) is Red
  • GND (Ground) is Brown

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power

Package Includes :

1 x TowerPro SG90 9g Mini Servo Motor with Cable

1 x Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws

Important Links

Datasheet
SKU: TAF5-002 Categories: , Tags: , , ,
Weight 0.015 kg
HSN Code

85011019
  1. Model SG90 Mini Analog Servo
    Operating Voltage (VDC) 3.0-7.2V
    Operating Speed @4.8V 0.12sec/60 degrees
    Stall Torque @ 4.8V (Kg-Cm) 1.2kg
    Stall Torque @6.6V (Kg-Cm) 1.6 kg
    Operating Temperature (°C) -30℃~60℃
    Dead Band Width ( μs) 7us
    Cable Length (cm) 24.5cm
    Shipment Weight 0.012 kg
    Shipment Dimensions 8 × 7 × 1 cm
