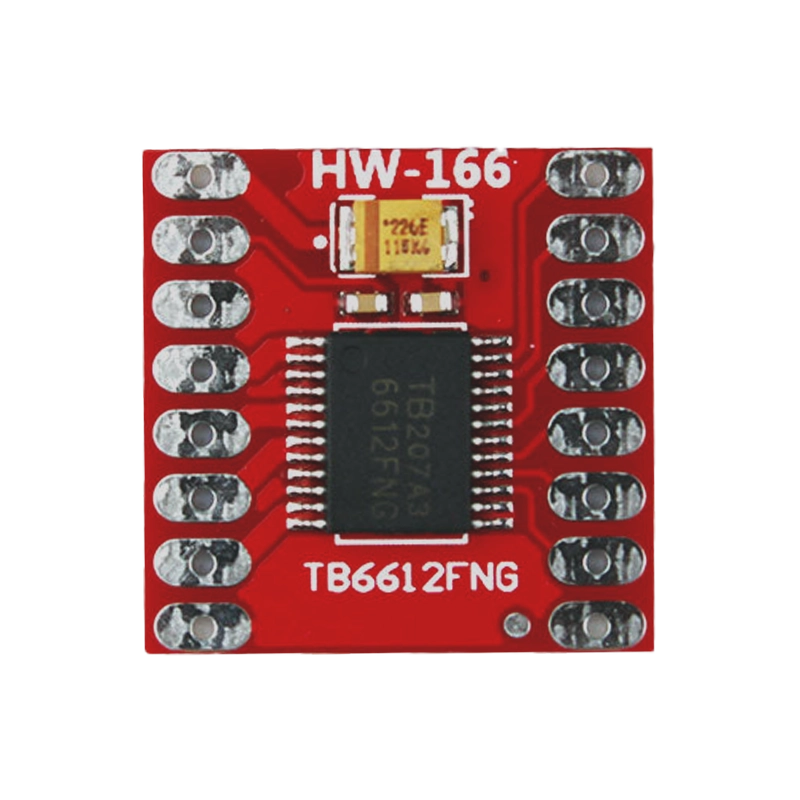

TB6612FNG Dual DC Motor Driver Board

TB6612FNG Dual DC Motor Driver Module

The TB6612FNG Dual DC Motor Driver is a reliable and compact module designed to control up to two DC motors with precision and efficiency. It supports up to 1.2A continuous current (per channel) and 3.2A peak current, making it suitable for a wide range of DIY electronics, robotics, and automation projects. With simple control inputs (IN1 & IN2), you can run motors in forward, reverse, brake, or stop modes, while speed control is handled using a PWM signal (up to 100kHz). Each motor channel works independently, giving you flexibility for differential drive systems such as robotic cars. The module is equipped with built-in thermal shutdown and low-voltage detection for safe operation. A standby pin is also provided to minimize power consumption when the driver is not in use.

Key Features:

• Supports 2 DC motors (independent control)
• Output Current: 1.2A continuous / 3.2A peak
• Motor control modes: CW, CCW, short-brake, stop
• PWM speed control (up to 100kHz frequency)
• Standby mode for power saving
• Thermal shutdown & low-voltage detection
• All pins broken out to 0.1” headers for easy interfacing
• Onboard decoupling capacitors for stable performance

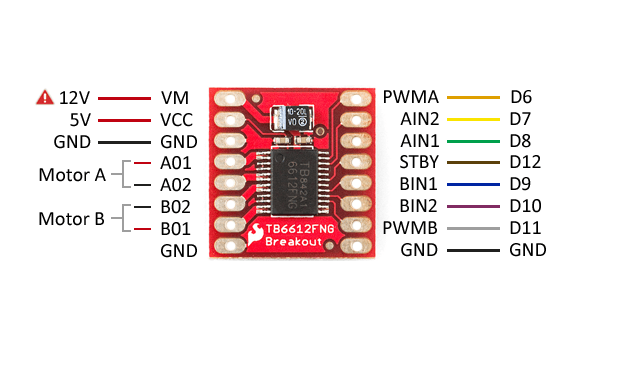

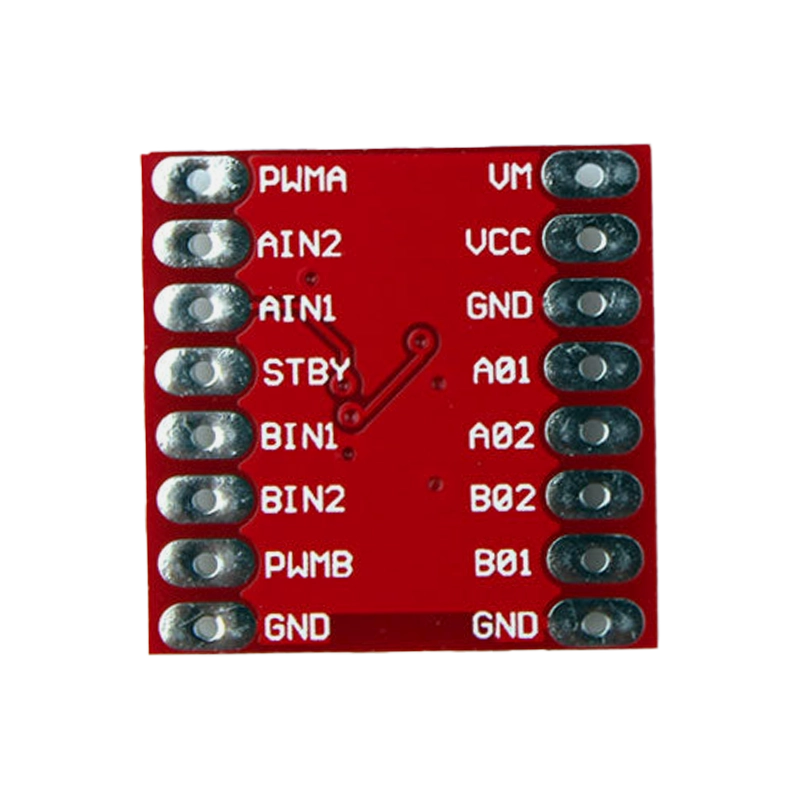

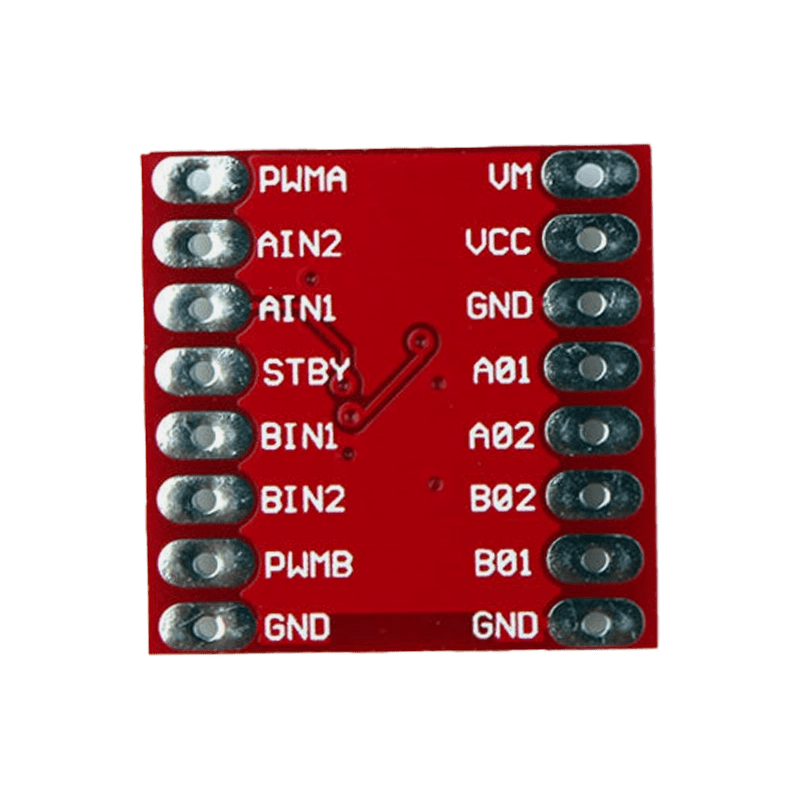

Pinouts

Specifications:

• Driver IC: TB6612FNG
• Logic Voltage: 2.7V – 5.5V
• Motor Supply Voltage: up to 15V DC
• Continuous Current: 1.2A per channel
• Peak Current: 3.2A per channel
• Channels: 2 (A & B outputs)
• Weight: 22g

Package Includes:

• 1 × TB6612FNG Dual DC Motor Driver Module
