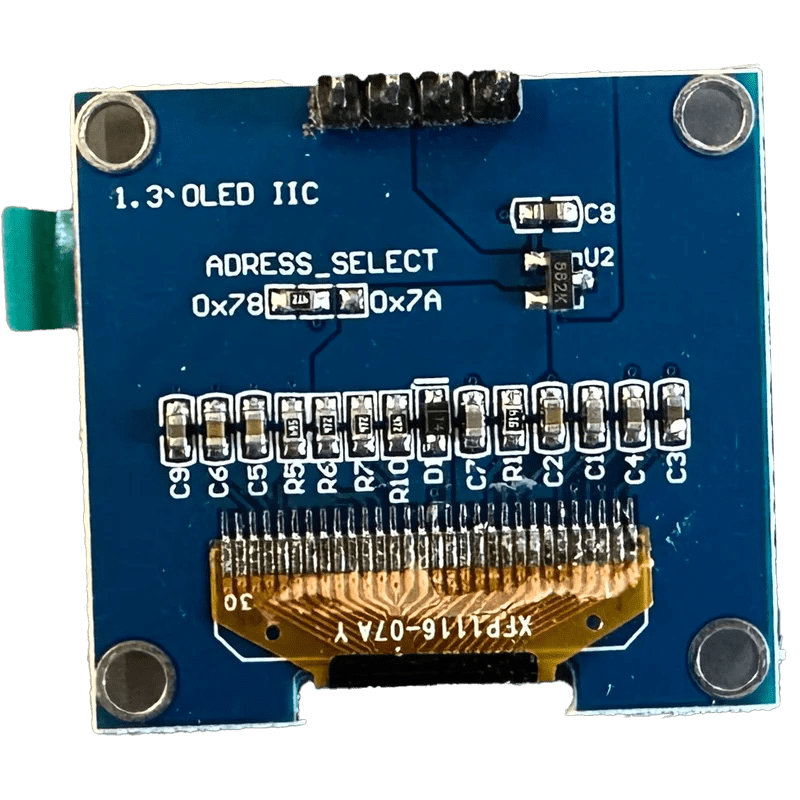

About 1.3In OLED Display
This 1.3in OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Pin Definition:
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.
Package Includes:
1 x 1.3 Inch I2C 128×64 OLED Display Module 4 Pin – BLUE
Specifications:
| Display Size | 1.3 inch |
| Resolution | 128 x 64 Pixels |
| Controlling Chip | SSH1106 |
| Display Area | 34.5 x 19mm |
| Driving Voltage | 3.3-5V |
| Operating Temperature | -40~70 Celsius |
| Interface Type | I2C |
| Pixel Color | BLUE |
| Length (mm) | 35.5 |
| Width (mm) | 33.5 |
| Height (mm) | 4 |
| Weight (gm) | 7 |
