Relays
Showing all 9 results
-
Electronic Components, Relays
1 Channel 5V Relay Module with Optocoupler
- 1 channel relay board
- Operating Voltage 5V
- Max Current : 20mA
- Relay Contact Current Capacity at AC250V: 10A
- Relay Contact Current Capacity at DC5V: 10A
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
SKU: TFF1-002 -
-
Relays
4 Channel Relay Module Isolated Optocoupler 5V 10A
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally closed contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
SKU: TDF6-004-1 -
Relays
8 Channel Relay Module Isolated Optocoupler 5V 10A
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Channel: 8 channel
- Relay Operating Voltage: 5V
- Power supply and relay instructions, lit, disconnect is off;
- Input signal, signal, common Terminal and start conducting;
- Input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally close contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
* Product Images are shown for illustrative purposes
SKU: TDF6-004 -
Electronic Components, Relays
1 Channel 5V Relay Module without Optocoupler
- The 8550 transistor drive, driveability.
- It has a relay status indicator led Power LED(Green).
- Relay control interface by single-chip IO.
- Low-level suction close, high-level release.
- Easy to use, simple 3-line structure.
SKU: TAF3-004 -
Electronic Components, Relays
5V 7A PCB Mount Sugar Cube Relay – SPDT (Pack Of 5)
- 100% Brand new and high quality
- Compact, lightweight, and durable
- Control(coil) Voltage: 5V
- Pin: 5Pin
- Load voltage/Current: 7A 250V～10A 30VDC/10A 125VAC～10A28VDC
- Application: Modules, Development board, Connector, Cables & Adapters, DIY PCB Universal Board, IC Sockets
- Quantity: 5pcs
- Color: Blue HL Make or as per availability
- Size: Approx. 1.8 x 1.5 x 1.6cm (L*W*H)
SKU: TDF4-002 -
Relays
5V Dual Channel Relay Module with Optocoupler Good Quality
- Low-Level Trigger Relay Module
- Two separate LEDs for On/Off indication of the Relay.
- Triggering input voltage 3.3V – 5V
- Two separate LEDs for On/Off indication of the Relay
- Triggering input voltage 3.3V – 5V 4)
- Back EMF protection
- Back EMF protection 2 LEDs to indicate when relays are ON.
- Works with logic-level signals from 3.3V or 5V devices
- Opto isolation circuitry
- Module with diode current protection, short response time
- AC Control Voltage: 250V @max.10A
- DC Control Voltage: 30V @max. 10A
SKU: TAF3-001 -
Electronic Components, Relays

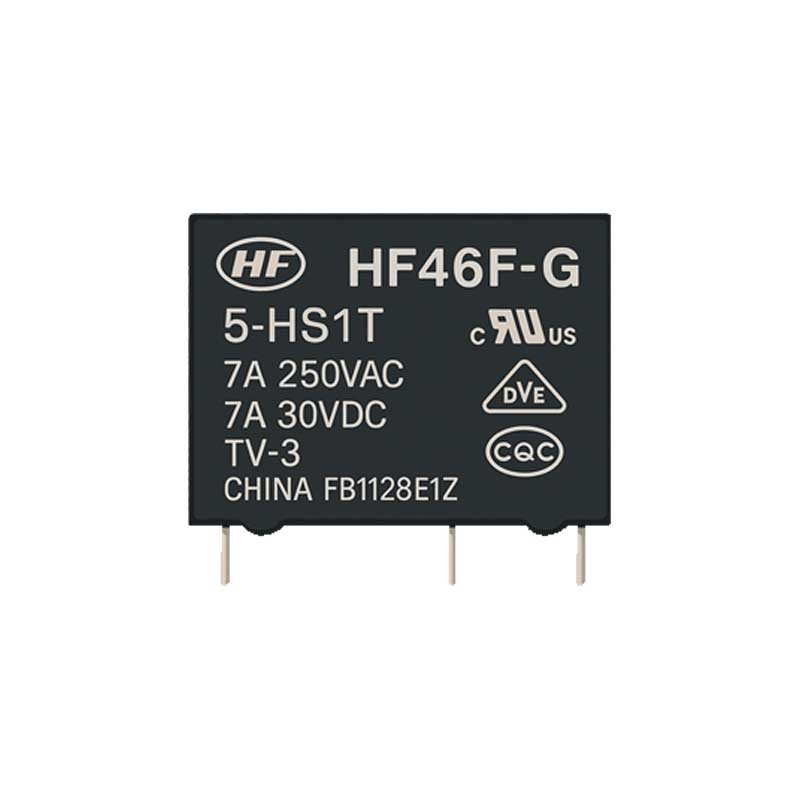

Hongfa HF46F 5A SPST 5V PCB Sealed Subminiature Intermediate Power Relay(Pack of 5)
Electronic Components, RelaysHongfa HF46F 5A SPST 5V PCB Sealed Subminiature Intermediate Power Relay(Pack of 5)
Features
- 5A switching capability
- Meets VDE 0700, 0631 reinforce insulation
- Highly efficient magnetic circuit for high sensitivity: 200mW
- Extremely small footprint utilizing PCB area
SKU: TDF4-003
